Smc 3G-OTH-189565 — Technical Specifications

Name: Smc 3G-OTH-189565 SMC Compact Cylinder: 40 mm Bore Dia, 25 mm Stroke Lg, Through Hole Mounting, Aluminum, 1/8 in NPT (MPN NCDQ2B40-25DZ). Key specifications — attr946022: Through Hole; attr946024: Single Rod; attr946038: NCQ2; attr1123057: Rotating Rod; attr945997: SMC.
Brand: Smc

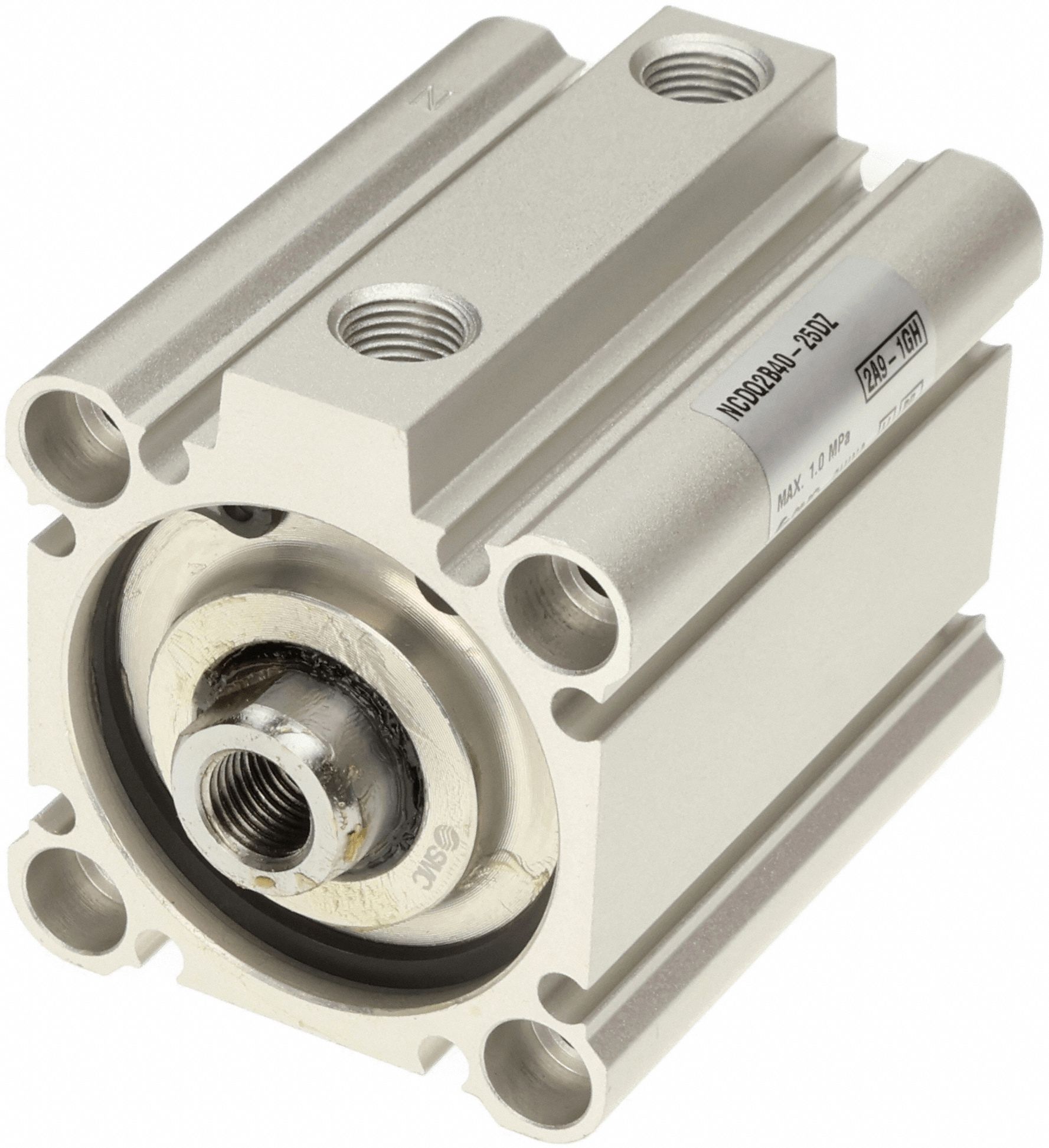

The SMC NCQ2 Compact Cylinder (MPN NCDQ2B40-25DZ) is a through-hole mount, single-rod, rotating-rod pneumatic cylinder with a 40 mm bore diameter and 25 mm stroke length. It features a 1/8 in NPT port size and an aluminum construction, designed for compact industrial applications.

View Product & Quote

Technical Specifications

Parameter	Value
NPT	1/8 in
Type	Through Hole Mounting, Aluminum
Stroke Lg	25 mm
Manufacturer Part Number	NCDQ2B40-25DZ
