Smc 3G-OTH-189588 — Technical Specifications

Name: Smc 3G-OTH-189588 SMC Compact Cylinder: 32 mm Bore Dia, 15 mm Stroke Lg, Through Hole Mounting, Aluminum, 1/8 in BSPT (MPN CQ2B32-15DMZ-XB6). Key specifications — attr946022: Through Hole; attr946024: Single Rod; attr946038: CQ2; attr1123057: Rotating Rod; attr945997: SMC.
Brand: Smc

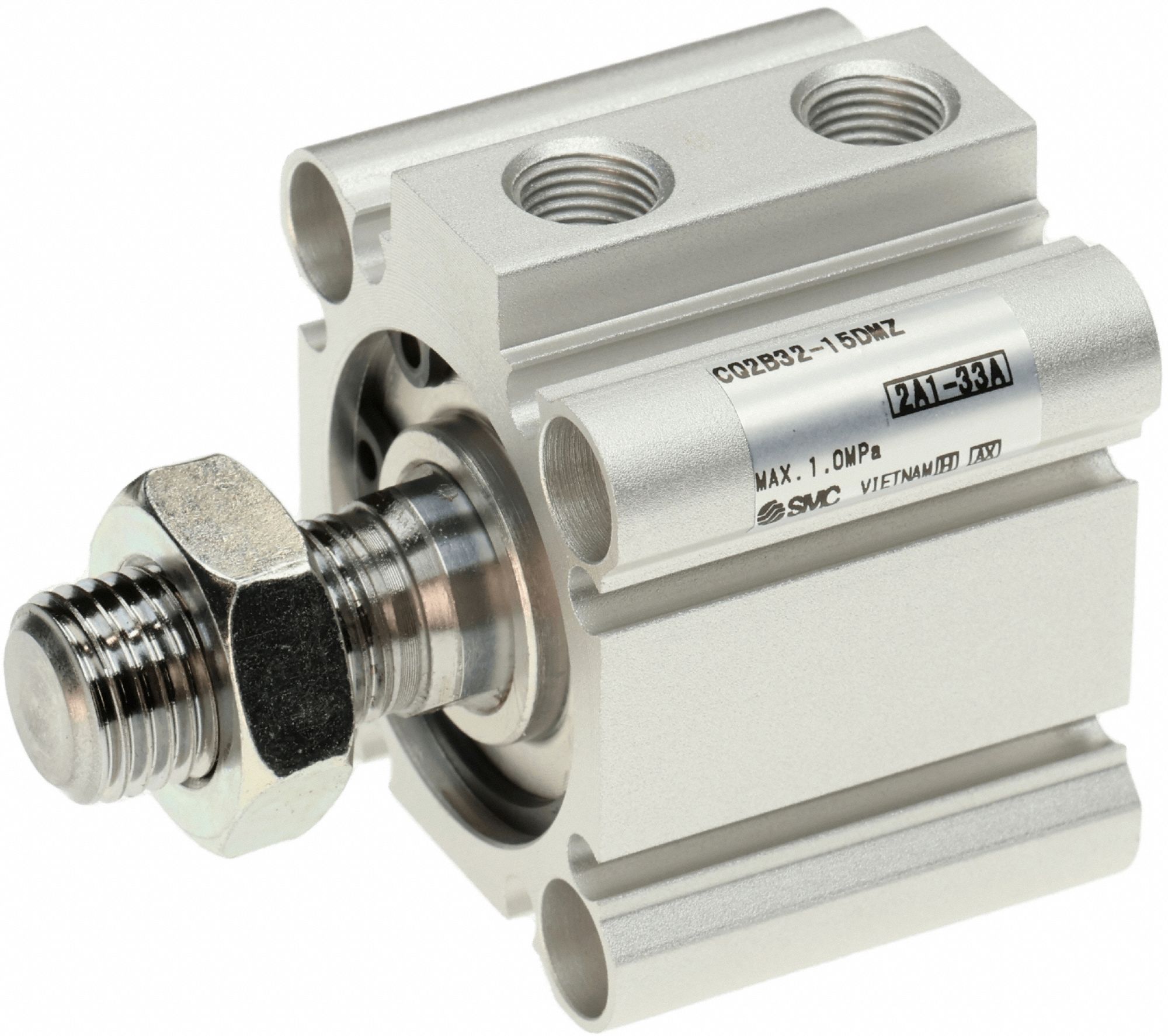

The SMC CQ2B32-15DMZ-XB6 is a CQ2 series compact cylinder with a 32 mm bore diameter and 15 mm stroke length, featuring through hole mounting and a single rod design. This rotating rod cylinder is constructed of aluminum and has a 1/8 in BSPT port size.

View Product & Quote

Technical Specifications

Parameter	Value
BSPT	1/8 in
Type	Through Hole Mounting, Aluminum
Stroke Lg	15 mm
Manufacturer Part Number	CQ2B32-15DMZ-XB6
