Smc 3G-OTH-189549 — Technical Specifications

Name: Smc 3G-OTH-189549 SMC Compact Cylinder: 12 mm Bore Dia, 20 mm Stroke Lg, Tapped Hole/Through Hole Mounting, Aluminum (MPN CDQSWB12-20DM). Key specifications — attr946022: Tapped Hole; attr946024: Double Rod; attr946038: CQS; attr1123057: Rotating Rod; attr945997: SMC.
Brand: Smc

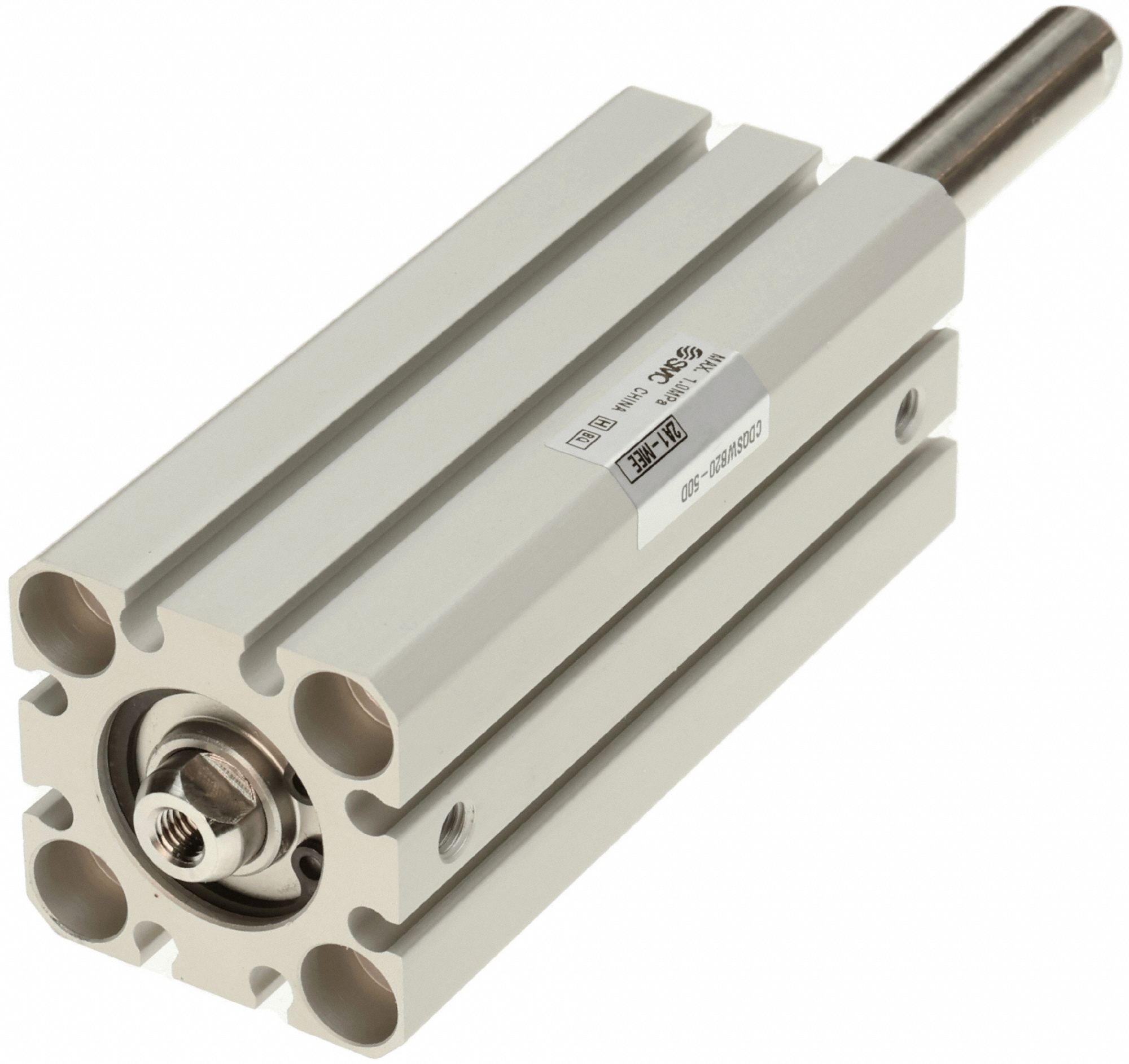

The SMC Compact Cylinder (SKU 826DV8, MPN CDQSWB12-20DM) is a through-hole mount compact cylinder from the CQS series with a 12 mm bore diameter and 20 mm stroke length. It features a double rod design with a rotating rod and tapped hole mounting, constructed in aluminum. This product is supplied by SMC.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Tapped Hole/Through Hole Mounting, Aluminum
Stroke Lg	20 mm
Manufacturer Part Number	CDQSWB12-20DM
