Smc 3G-OTH-189573 — Technical Specifications

Name: Smc 3G-OTH-189573 SMC Compact Cylinder: 16 mm Bore Dia, 10 mm Stroke Lg, Tapped Hole/Through Hole Mounting, Aluminum (MPN CDQSB16-10D). Key specifications — attr946022: Through Hole; attr946024: Single Rod; attr946038: CQS; attr1123057: Rotating Rod; attr945997: SMC.
Brand: Smc

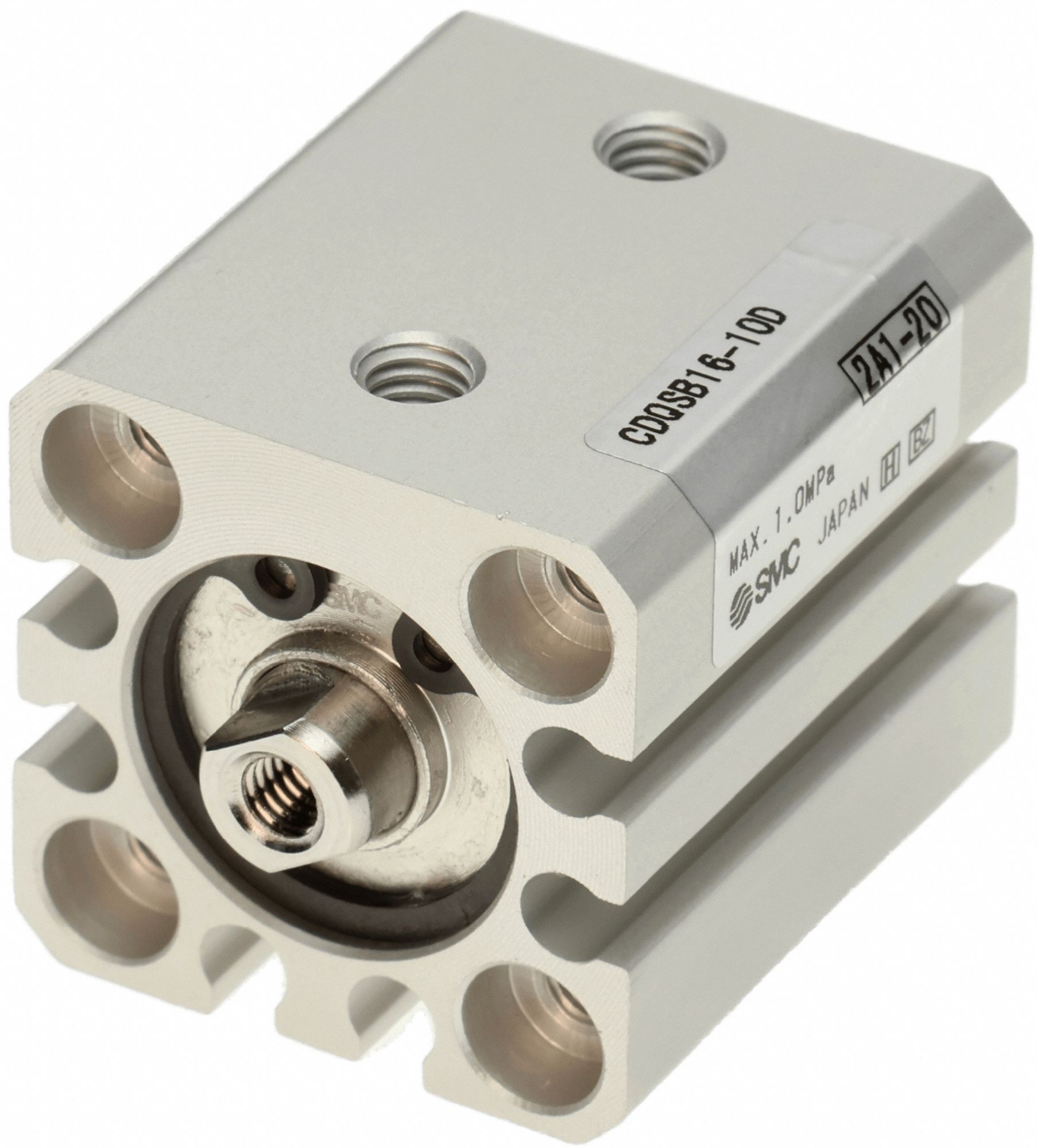

The SMC Compact Cylinder (MPN CDQSB16-10D) is a through-hole mount compact cylinder from the CQS series, featuring a 16 mm bore diameter and 10 mm stroke length. It is a single-rod, rotating-rod design with tapped hole/through hole mounting and an aluminum construction.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Tapped Hole/Through Hole Mounting, Aluminum
Stroke Lg	10 mm
Manufacturer Part Number	CDQSB16-10D
