Smc 3G-OTH-142423 — Technical Specifications

Name: Smc 3G-OTH-142423 SMC Round Body Cylinder: 32 mm Bore, 75 mm Stroke, Non-Repairable, Stainless Steel, Clevis Mounting (MPN CDM2E32-75AZ1). Key specifications — attr1122958: Rotating Rod; attr942235: Carbon Steel; attr942202: SMC; attr942209: Aluminum; attr942227: Clevis; attr942243: CM2-Z1.
Brand: Smc

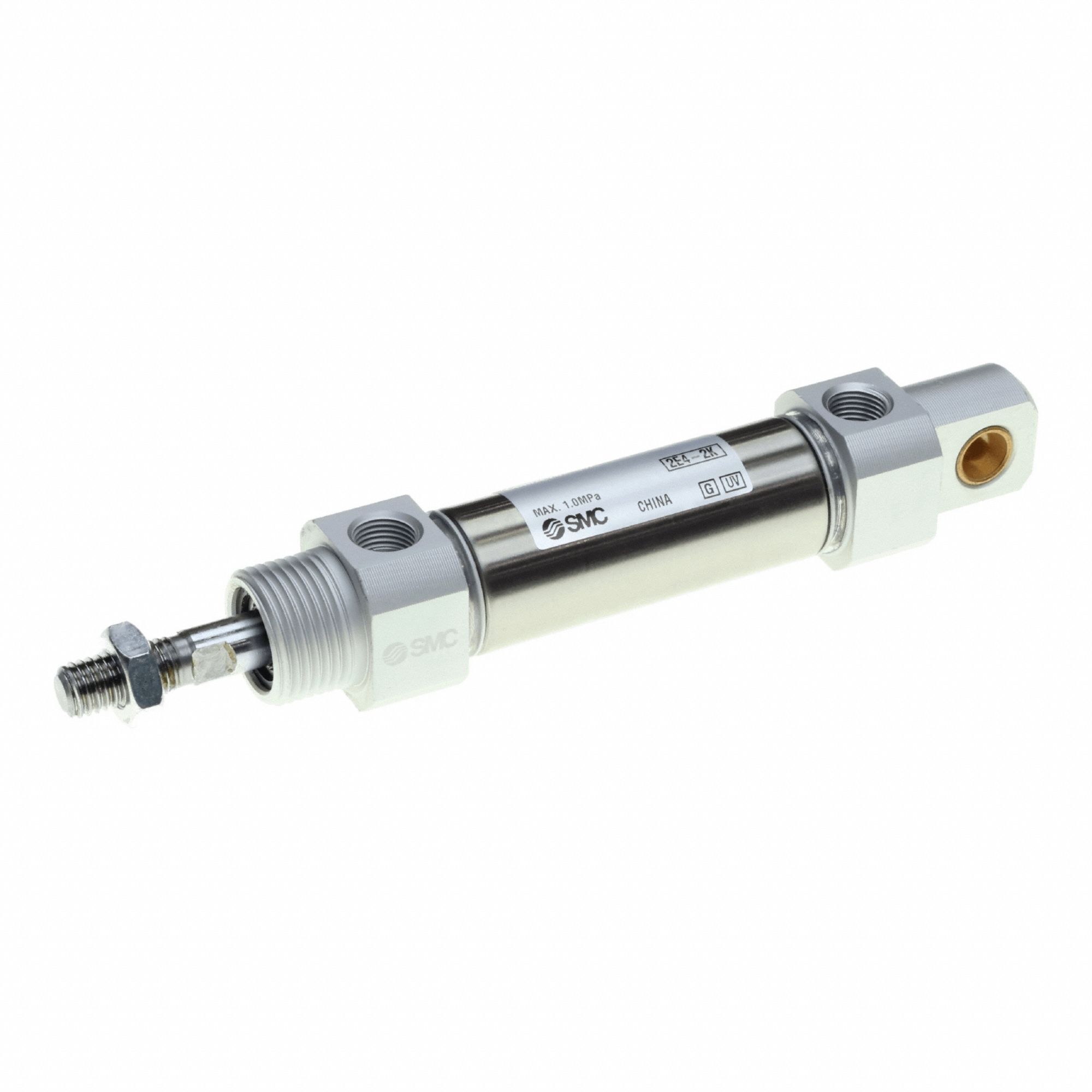

The SMC Round Body Cylinder (SKU 826DM9, MPN CDM2E32-75AZ1) is a rear pivot mount cylinder with a 32 mm bore and 75 mm stroke. It features a rotating rod, clevis mounting, and is constructed with an aluminum body and carbon steel components. This non-repairable cylinder is part of the CM2-Z1 series.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Non-Repairable, Stainless Steel, Clevis Mounting
Stroke	75 mm
Manufacturer Part Number	CDM2E32-75AZ1
