Smc 3G-OTH-151476 — Technical Specifications

Name: Smc 3G-OTH-151476 SMC Tie Rod Cylinder: Tie Rod, 80 mm Bore Dia, 230 mm Stroke Lg, Single Rod Rods, Aluminum, Clevis (MPN C96SDD80-230C). Key specifications — attr945230: SMC; attr945312: Magnetic Piston; attr945340: Metric.
Brand: Smc

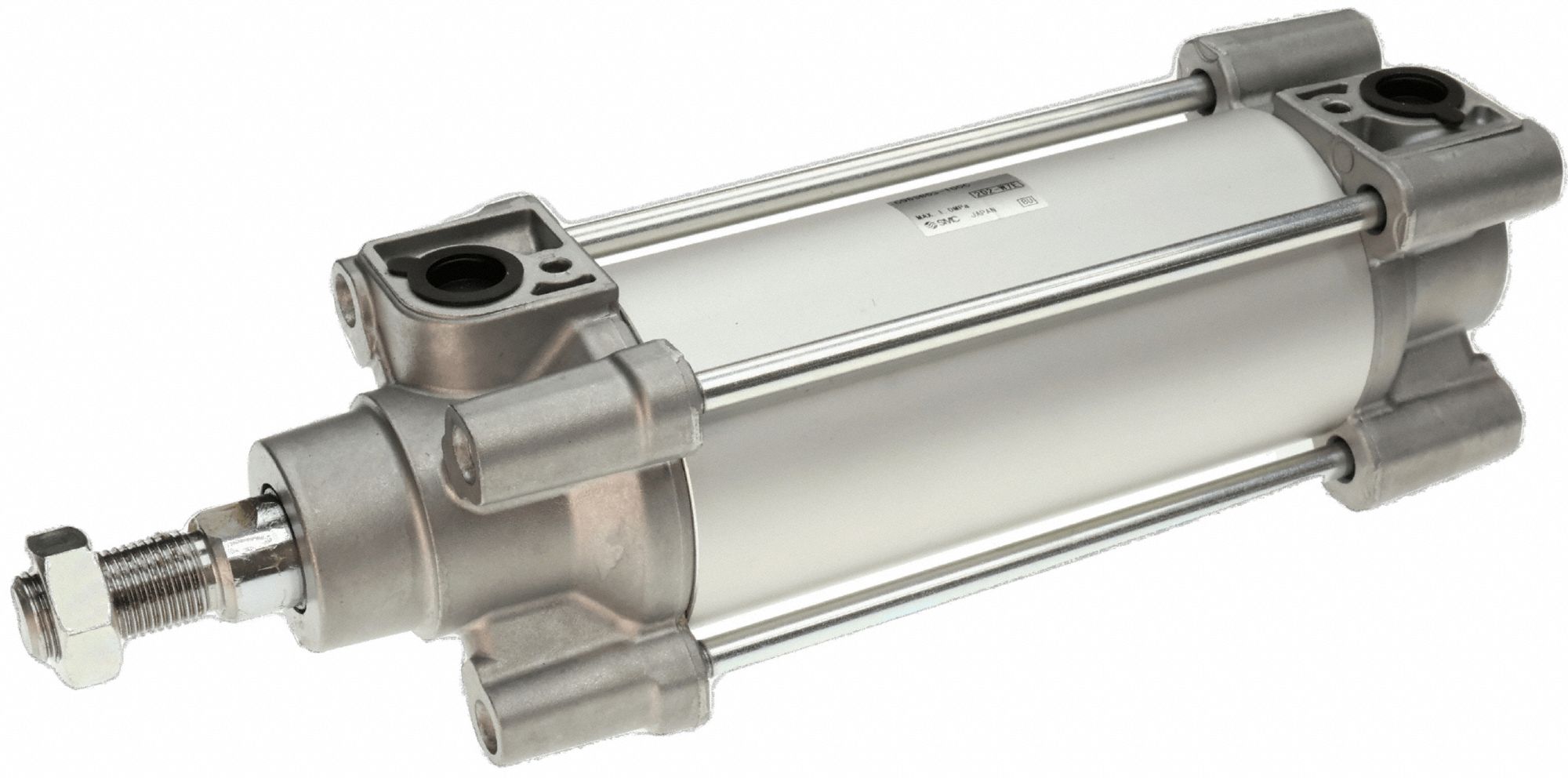

The SMC Tie Rod Cylinder (SKU 826DA9, MPN C96SDD80-230C) is an ISO square-head cylinder with an 80 mm bore diameter and 230 mm stroke length. It features a single rod, magnetic piston, and metric design, constructed from aluminum with a clevis mounting style.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Single Rod Rods, Aluminum, Clevis
Bore Dia	80 mm
Stroke Lg	230 mm
Manufacturer Part Number	C96SDD80-230C
