Smc 3G-OTH-161118 — Technical Specifications

Name: Smc 3G-OTH-161118 SMC Rotary Actuator: Single Vane Actuator, 90° Rotation Angle, 75.6 N-m Output Torque, 1/8 in BSPT (MPN CDRB1BW80-90S). Key specifications — attr293632: CDRB1BW80-90S; attr294754: SMC; attr947098: Magnetic Piston; attr947108: Basic; attr947133: Metric; attr1108504: Side Ported.
Brand: Smc

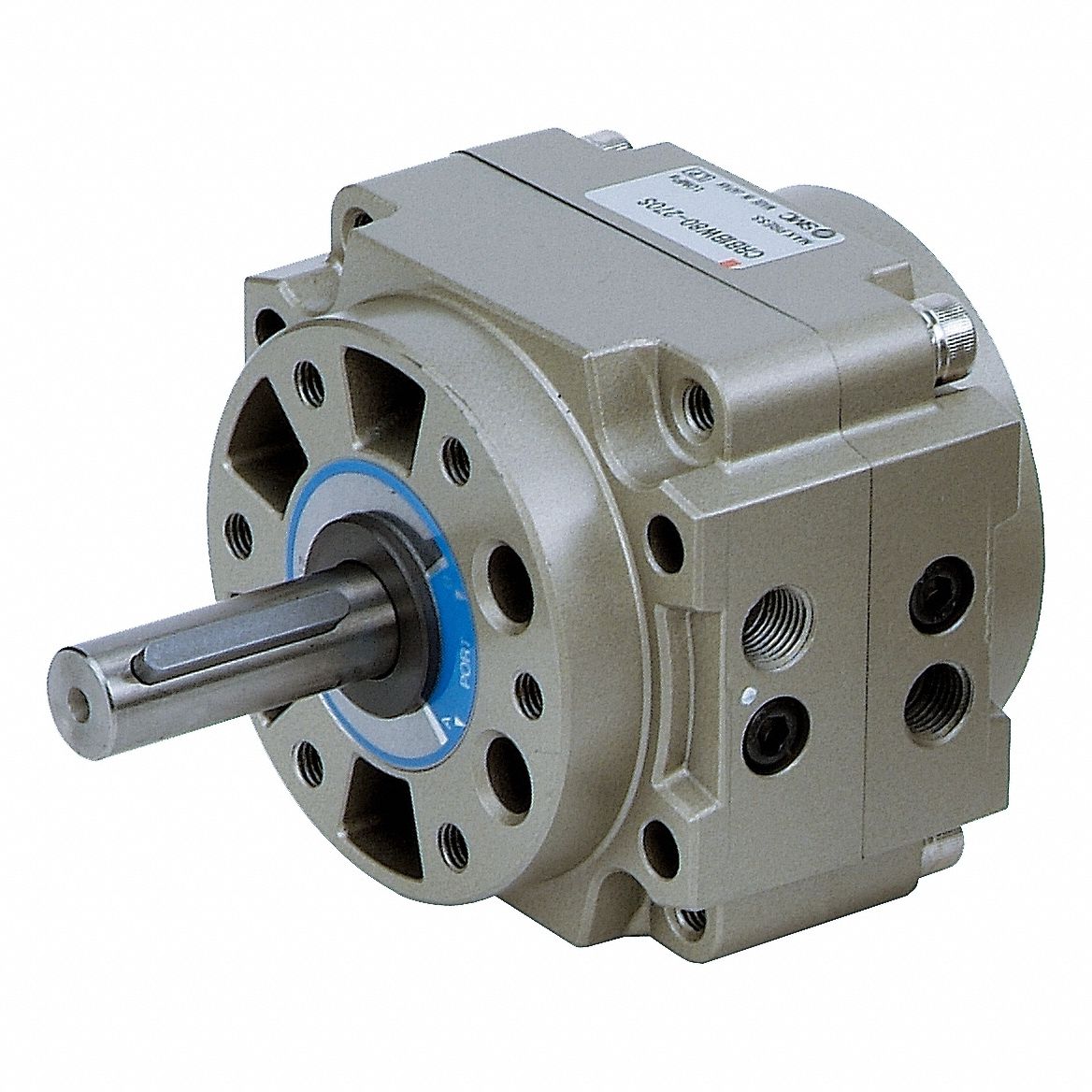

The SMC Rotary Actuator: Single Vane Actuator (SKU 5PFA2, MPN CDRB1BW80-90S) is a vane-style rotary actuator featuring a 90° rotation angle and 75.6 N-m output torque. It includes a magnetic piston, basic configuration, metric design, and side ported porting with 1/8 in BSPT connections.

View Product & Quote

Technical Specifications

Parameter	Value
BSPT	1/8 in
Rotation Angle	90°
N-M Output Torque	75.6
Manufacturer Part Number	CDRB1BW80-90S
