Smc 3G-OTH-161091 — Technical Specifications

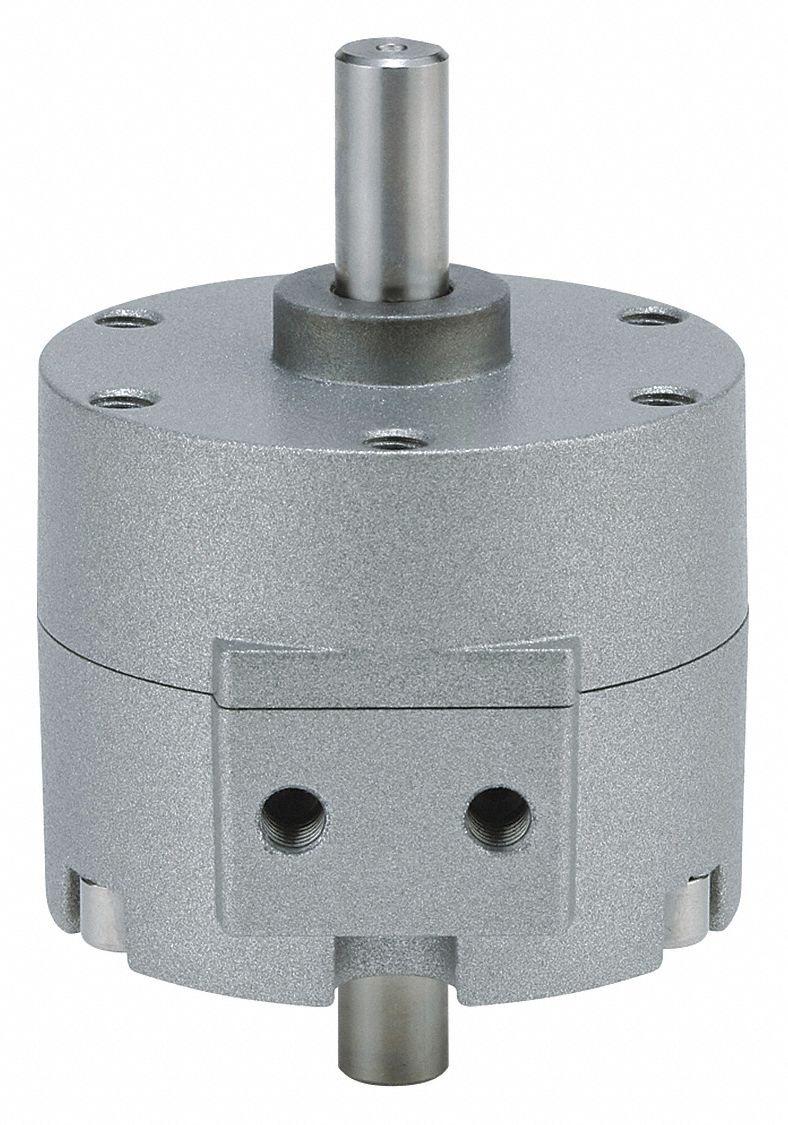

Name: Smc 3G-OTH-161091 SMC Rotary Actuator: Single Vane Actuator, 90° Rotation Angle, 3.8 N-m Output Torque, 30 mm Bore Dia (MPN CDRB2BW30-90SZ). Key specifications — attr293632: CDRB2BW30-90SZ; attr294754: SMC; attr947098: Magnetic Piston; attr947108: Basic; attr947133: Metric; attr1108504: Side Ported.
Brand: Smc

The SMC Rotary Actuator: Single Vane Actuator (MPN CDRB2BW30-90SZ) is a vane-style rotary actuator with a 90° rotation angle, 3.8 N-m output torque, and 30 mm bore diameter. It features a magnetic piston, basic design, metric dimensions, and side ported configuration.

View Product & Quote

Technical Specifications

Parameter	Value
Bore Dia	30 mm
Rotation Angle	90°
N-M Output Torque	3.8
Manufacturer Part Number	CDRB2BW30-90SZ
