Smc 3G-OTH-442399 — Technical Specifications

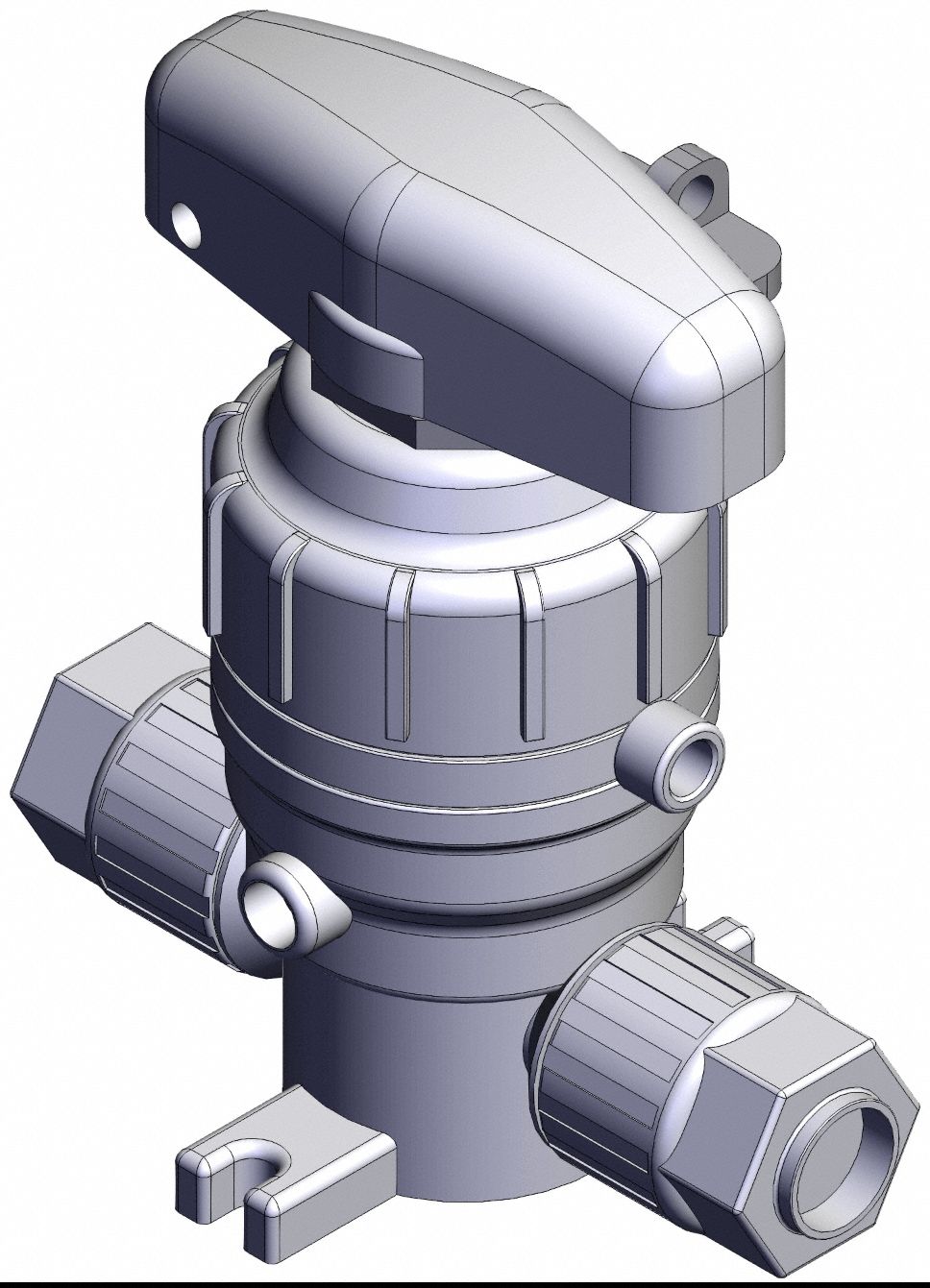

The SMC LVQH50-Z19-1 is a standard high-purity manual diaphragm valve, classified as a chemical liquid valve with a 3/4-inch connection. It features a PTFE diaphragm and is constructed with PFA, utilizing compression x compression end connections. The valve has a maximum working pressure of 0.4 MPa (CWP) and complies with NOM 57 standards.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | PFA, Compression x Compression, PTFE |
| Brand | SMC |
| Standards | NOM 57 |
| Diaphragm Material | PTFE |
| MPa Max Pressure (CWP) | 0.4 |
| Manufacturer Part Number | LVQH50-Z19-1 |
