Smc 3G-OTH-442396 — Technical Specifications

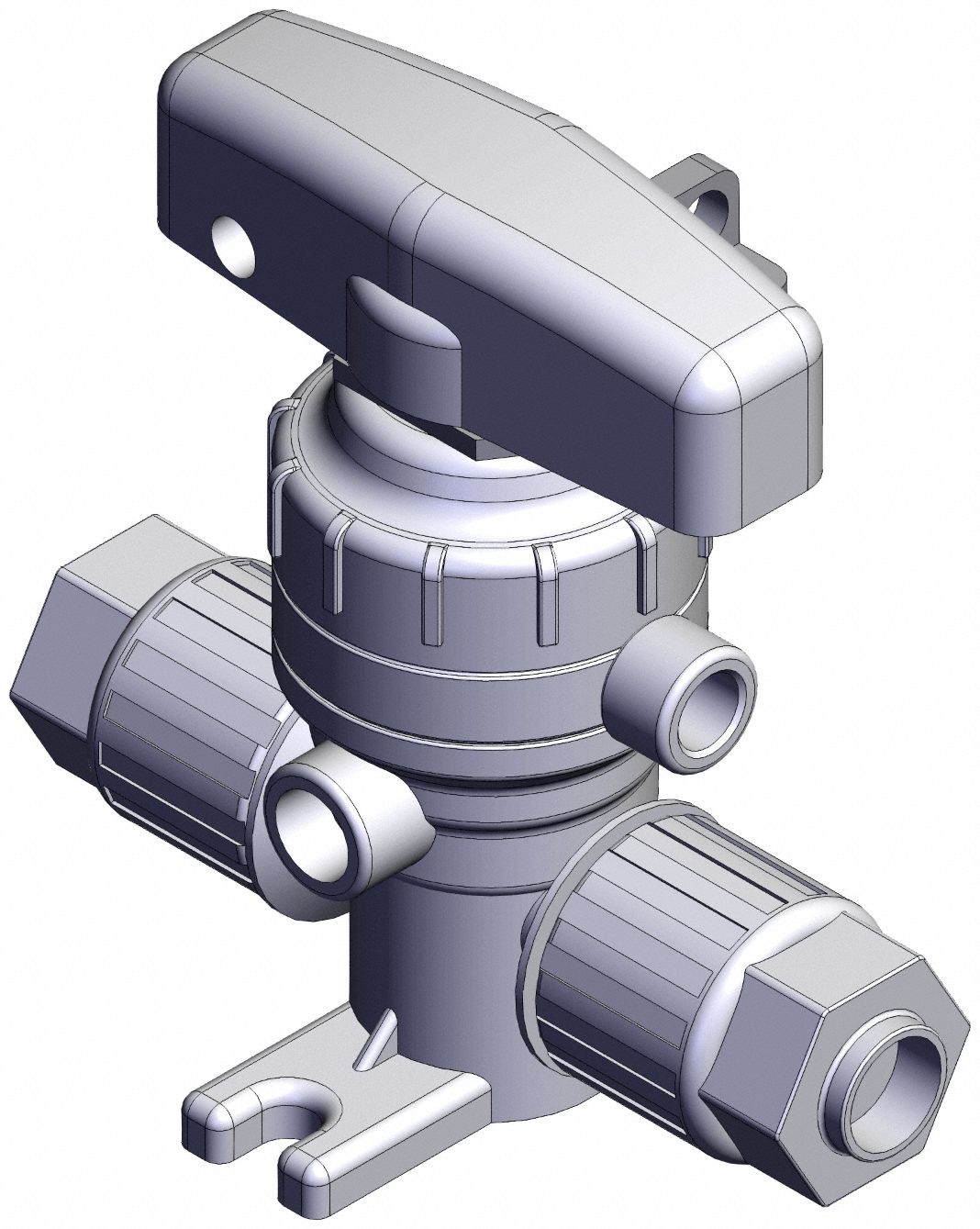

The SMC LVQH40-Z13-1 is a standard high-purity manual diaphragm valve, classified as a chemical liquid valve with a 1/2-inch connection. It features a PTFE diaphragm and PFA body, with compression x compression end connections, and is rated for a maximum pressure of 0.5 MPa (CWP). This UL-listed valve is designed for manual operation in industrial fluid handling applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | PFA, Compression x Compression, PTFE |
| Brand | SMC |
| Standards | UL |
| Diaphragm Material | PTFE |
| MPa Max Pressure (CWP) | 0.5 |
| Manufacturer Part Number | LVQH40-Z13-1 |
