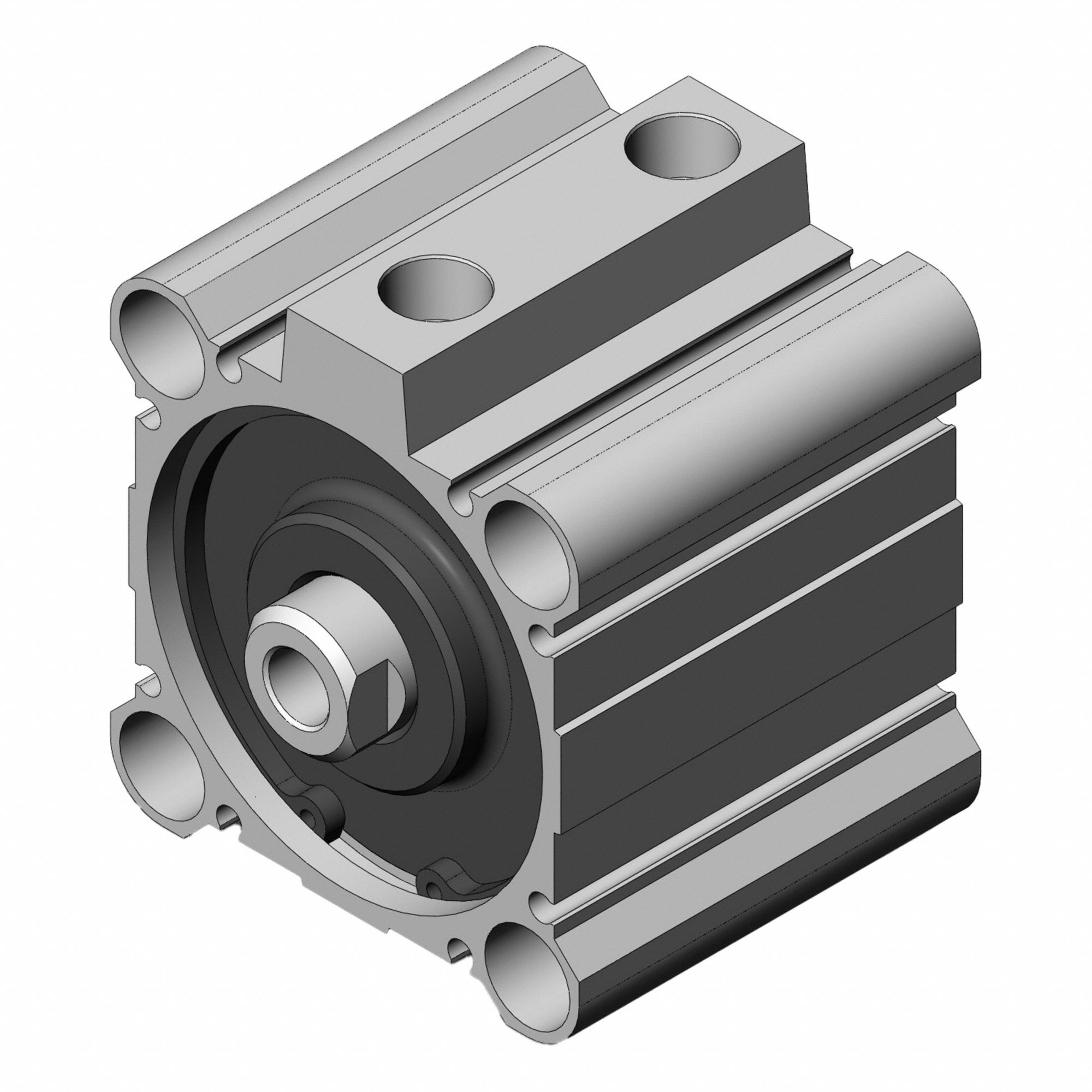

Smc 3G-OTH-189595 — Technical Specifications

Name: Smc 3G-OTH-189595 SMC Compact Cylinder: 63 mm Bore Dia, 20 mm Stroke Lg, Through Hole Mounting, Aluminum, 1/4 in BSPT (MPN CDQ2B63-20DCZ). Key specifications — attr946022: Through Hole; attr946024: Single Rod; attr946038: CQ2; attr1123057: Rotating Rod; attr945997: SMC.
Brand: Smc

The SMC CQ2 Compact Cylinder (MPN CDQ2B63-20DCZ) is a through-hole mount, single-rod, rotating-rod pneumatic cylinder with a 63 mm bore diameter and 20 mm stroke length. Constructed from aluminum, it features a 1/4 in BSPT port connection. This model is designed for compact, space-constrained industrial applications requiring rotary motion.

View Product & Quote

Technical Specifications

Parameter	Value
BSPT	1/4 in
Type	Through Hole Mounting, Aluminum
Stroke Lg	20 mm
Manufacturer Part Number	CDQ2B63-20DCZ
