Smc 3G-OTH-189581 — Technical Specifications

Name: Smc 3G-OTH-189581 SMC Compact Cylinder: 12 mm Bore Dia, 10 mm Stroke Lg, Through Hole Mounting, Aluminum, M5 x 0.8, Rc (MPN CDQ2WB12-10DZ). Key specifications — attr946022: Through Hole; attr946024: Double Rod; attr946038: CQ2W; attr1123057: Rotating Rod; attr945997: SMC.
Brand: Smc

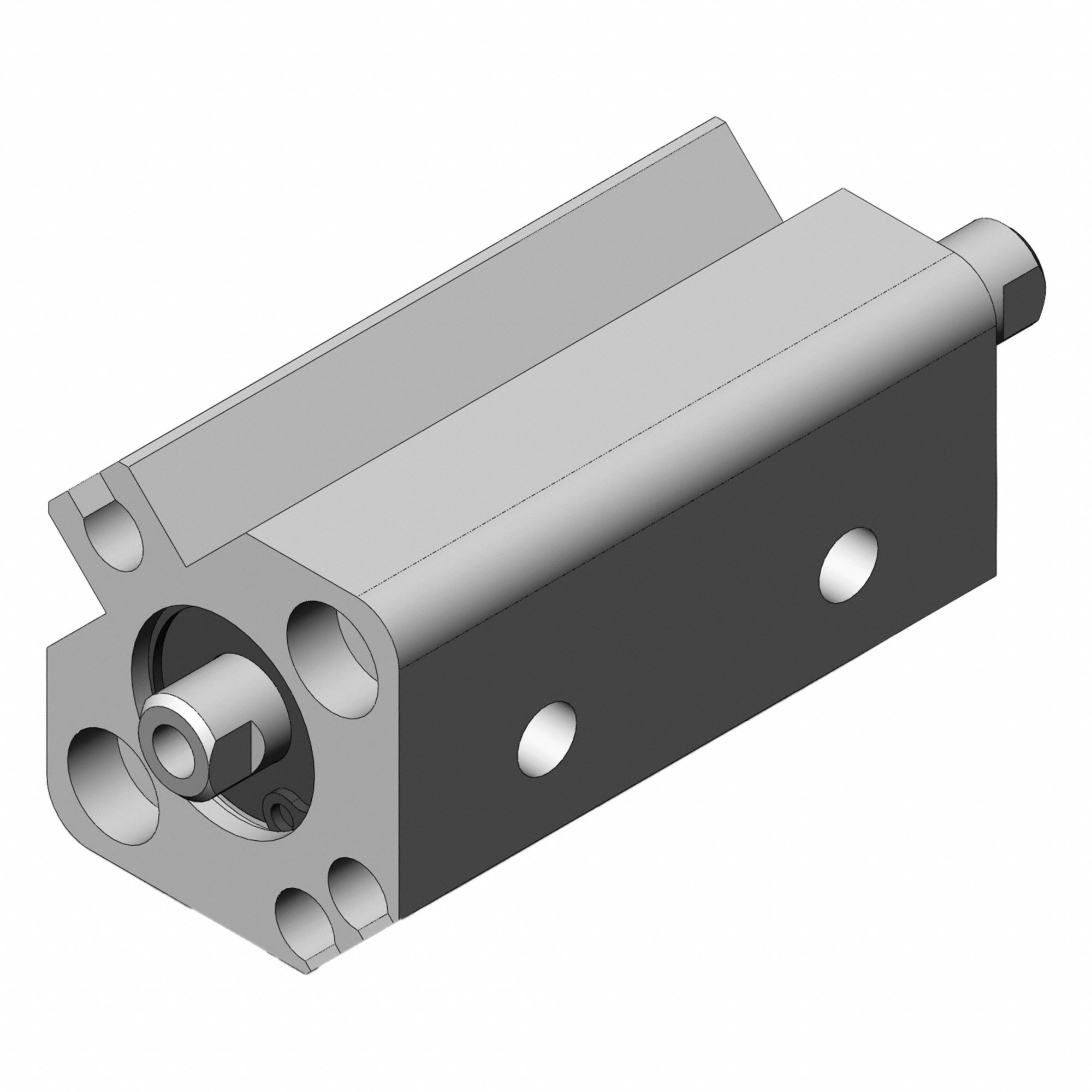

The SMC CQ2W Compact Cylinder (MPN CDQ2WB12-10DZ) is a through-hole mount, double-rod, rotating-rod pneumatic cylinder with a 12 mm bore diameter and 10 mm stroke length. It features an aluminum body and M5 x 0.8 port size with Rc thread. This compact cylinder is designed for applications requiring a rotating rod in a through-hole mounting configuration.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Through Hole Mounting, Aluminum, M5 x 0.8, Rc
Stroke Lg	10 mm
Manufacturer Part Number	CDQ2WB12-10DZ
