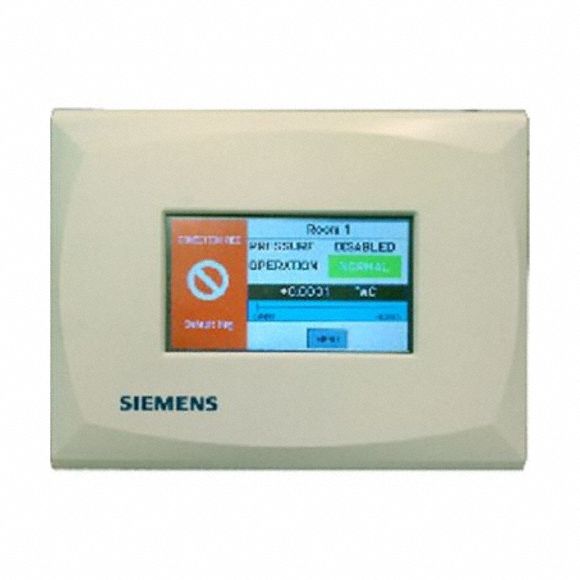

Siemens 3G-OTH-176167 — Technical Specifications

Name: Siemens 3G-OTH-176167 SIEMENS Room Condition Monitor: +/- 0.25" WC (62.5 Pa), BACnet/P1, Terminal Block, 547-323A. Key specifications — Manufacturer Part Number: 547-323A; Brand: SIEMENS; Accuracy: 0.5%; Analog Inputs: 4 to 20 mA Loop; Display Size: 4.3 in; Includes: Mating Electrical Connectors; Measurement Range: +/- 0.25" WC (62.5 Pa); Operating Humidity - Maximum: 95%.
Brand: Siemens

The Siemens Room Condition Monitor (SKU 810KJ4, part number 547-323A) is a BACnet/P1 device with a 4.3-inch display and a measurement range of +/- 0.25" WC (62.5 Pa). It offers 0.5% accuracy, operates on 18 to 30V AC, and includes 4 to 20 mA loop analog inputs. The unit is rated for 32°F to 120°F and up to 95% humidity, and comes with mating electrical connectors.

View Product & Quote

Technical Specifications

Parameter	Value
Type	BACnet/P1, Terminal Block, 547-323A
Brand	SIEMENS
Accuracy	0.5%
Includes	Mating Electrical Connectors
Display Size	4.3 in
Analog Inputs	4 to 20 mA Loop
Measurement Range	+/- 0.25" WC (62.5 Pa)
Operating Voltage	18 to 30V AC
Manufacturer Part Number	547-323A
Operating Temperature Range	32°F to 120°F
Operating Humidity - Maximum	95%
