Siemens 3G-OTH-43160 — Technical Specifications

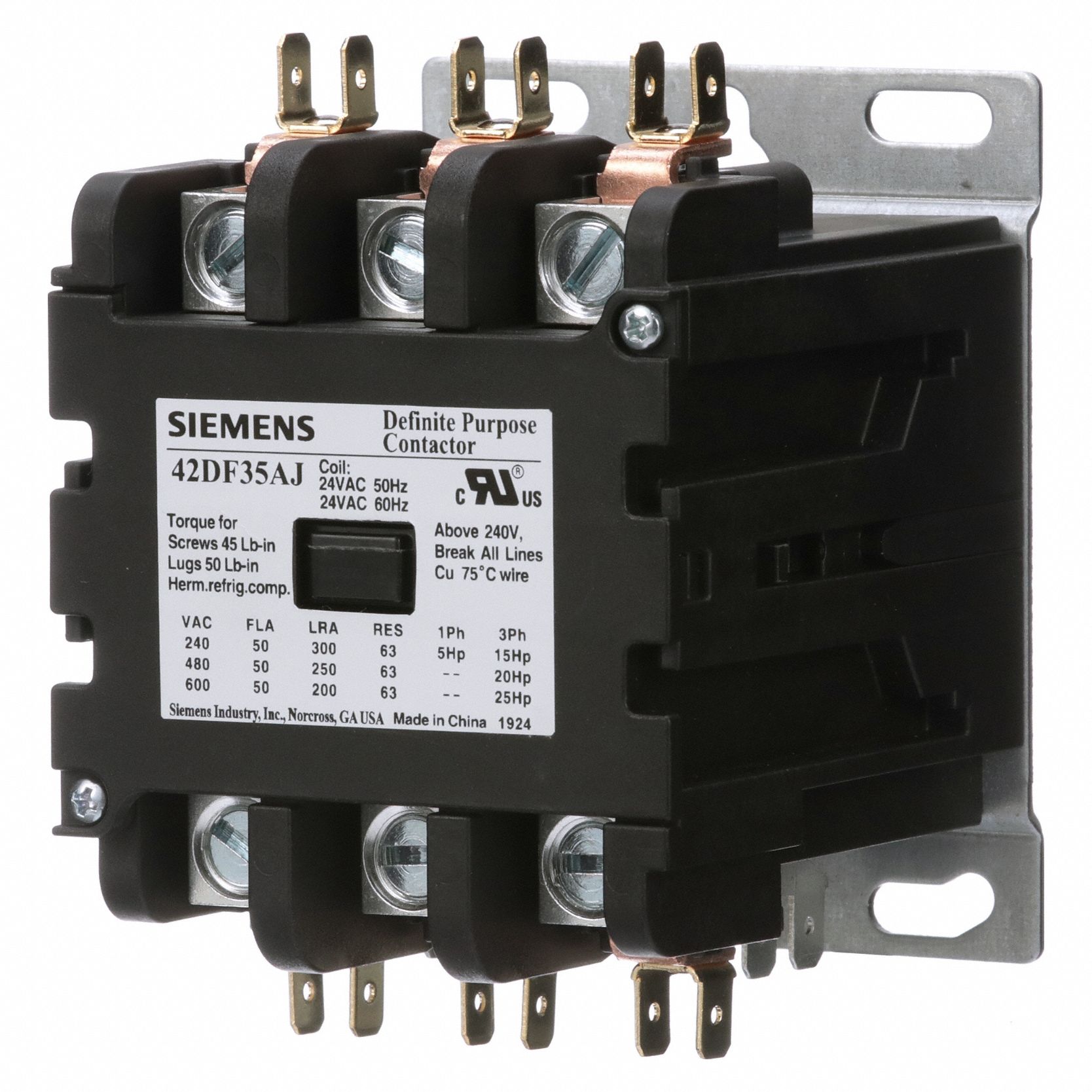

The SIEMENS Definite Purpose Contactor is a non-reversing, three-pole contactor from the 42 Series, featuring a 3NO main pole contact form and a maximum voltage rating of 600V AC. It operates with a 110/110-120V AC coil voltage and supports three-phase applications. The contactor offers surface mounting and terminal connections via quick disconnect and screw/box lug.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 120V |
| Type | 50 A, Non-Reversing, Std Contactor Frame Size |
| Brand | SIEMENS |
| Phase | Three |
| Series | 42 Series |
| Coil Voltage | 110/110-120V AC |
| Mounting Style | Surface |
| Main Pole Contact Form | 3NO |
| Maximum Voltage Rating | 600V AC |
| Manufacturer Part Number | 42DF35AF |
| Terminal Connection Type | Quick Disconnect and Screw/Box Lug |
