Siemens 3G-OTH-20702 — Technical Specifications

Name: Siemens 3G-OTH-20702 SIEMENS Molded Case Circuit Breaker: 200 A Amps, 22kA at 600V AC, Fixed, Lug, ABC, FXD6-A, 600V AC (MPN FXD63B200). Key specifications — Phase Connection: ABC; Instantaneous Trip: Fixed; Terminal Connection: Lug; Series: FXD6-A; Max. AIR Rating: 22kA at 600V AC.
Brand: Siemens

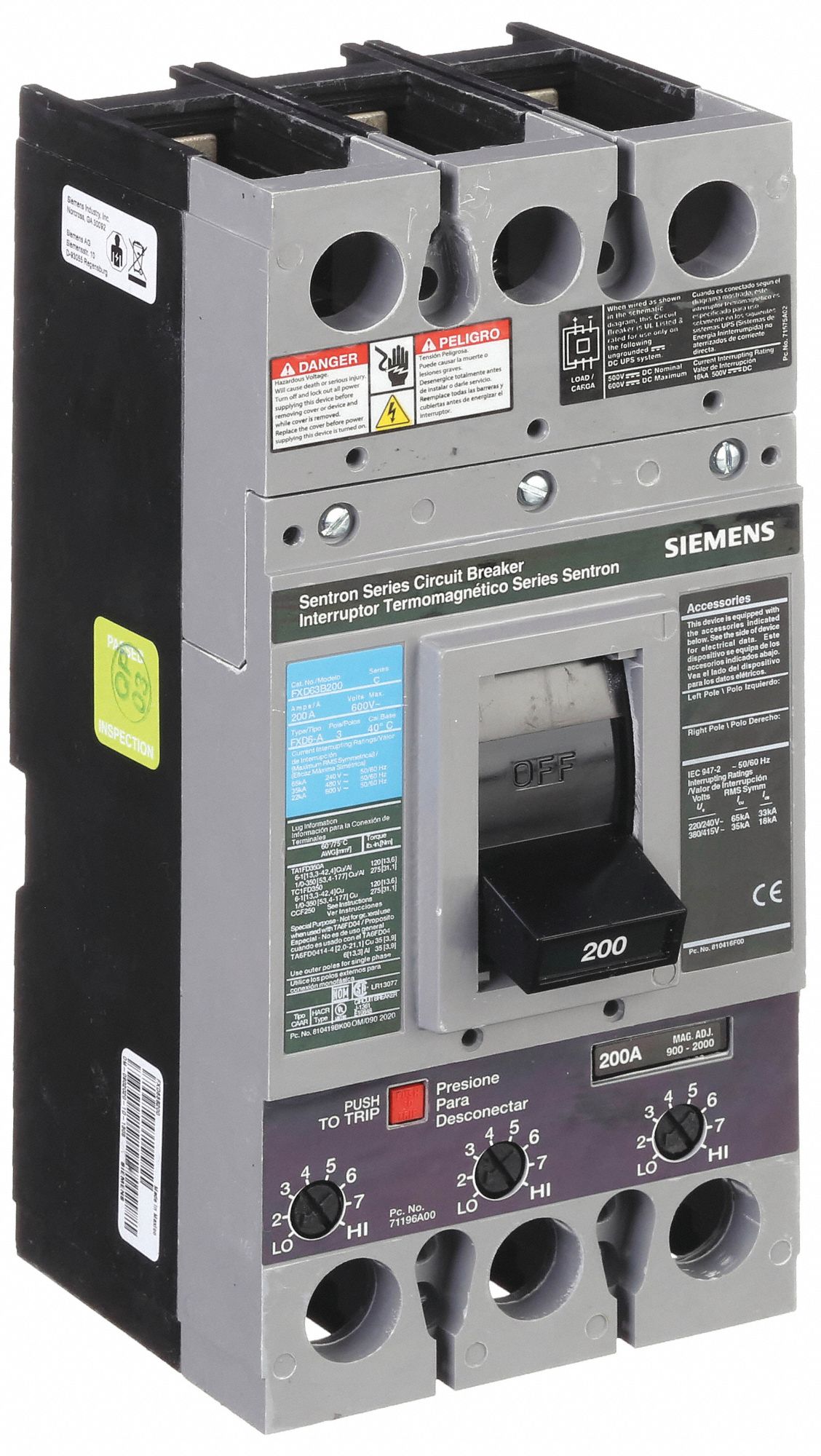

The SIEMENS Molded Case Circuit Breaker is an FD-Frame device rated for 200 A Amps. It is part of the FXD6-A series and features a maximum AIR rating of 22kA at 600V AC. The breaker has a fixed instantaneous trip, ABC phase connection, and lug terminal connections, with manufacturer part number FXD63B200.

View Product & Quote

Technical Specifications

Parameter	Value
AC	600V
Type	22kA at 600V AC, Fixed, Lug, ABC, FXD6-A
Series	FXD6-A
Max. AIR Rating	22kA at 600V AC
Phase Connection	ABC
Instantaneous Trip	Fixed
Terminal Connection	Lug
Manufacturer Part Number	FXD63B200
