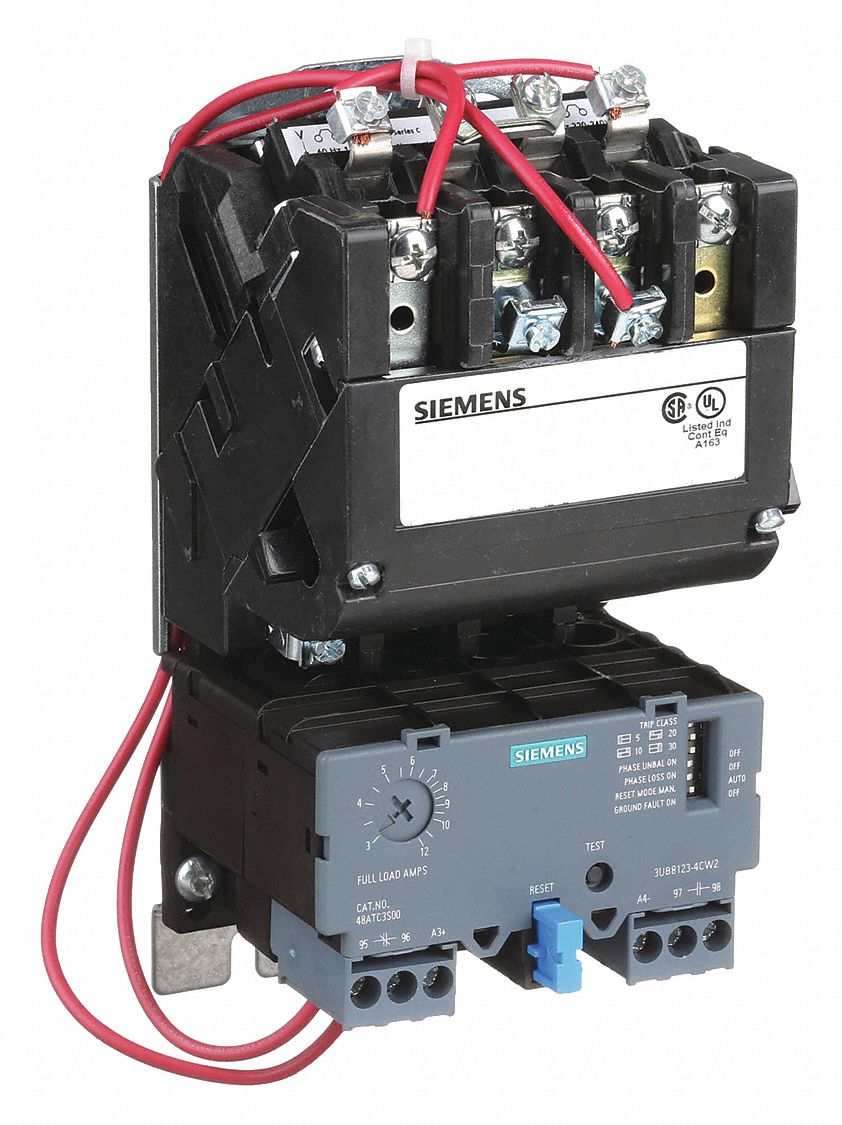

Siemens 3G-OTH-41228 — Technical Specifications
The SIEMENS NEMA Magnetic Motor Starter is a non-reversing starter with an electronic overload, designed for three-phase applications. This unit features a 110/120V AC coil, a 1NO auxiliary contact, screw terminals, and a pilot light for signaling. It is a NEMA Size 00 starter rated for 9 A, with no thermal units required as the overload protection is electronic.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 00, 9 A |
| Brand | SIEMENS |
| Phase | Three |
| Poles | 3 |
| AC Coil | 120V |
| Coil Voltage | 110/120V AC |
| Signaling Features | Pilot Light |
| Auxiliary Contact Form | 1NO |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Manufacturer Part Number | 14BUC32AF |
| Terminal Connection Type | Screw Terminals |
| Auxiliary Contacts Included | 1NO |
