Siemens 3G-OTH-23113 — Technical Specifications

Name: Siemens 3G-OTH-23113 SIEMENS Surge Protection Device: Three Phase, 480V AC Delta, 1800V (L-G, L-L), 552 V AC, 4X (MPN TPS3F0910D00). Key specifications — Voltage: 480V AC Delta; Includes: Dry Contacts; Max. Continuing Operating Voltage: 552 V AC; Voltage Protection Rating: 1800V (L-G, L-L); Enclosure Material: Polycarbonate; Max. Surge Current per Mode: 50kA (L-G; Brand: SIEMENS.
Brand: Siemens

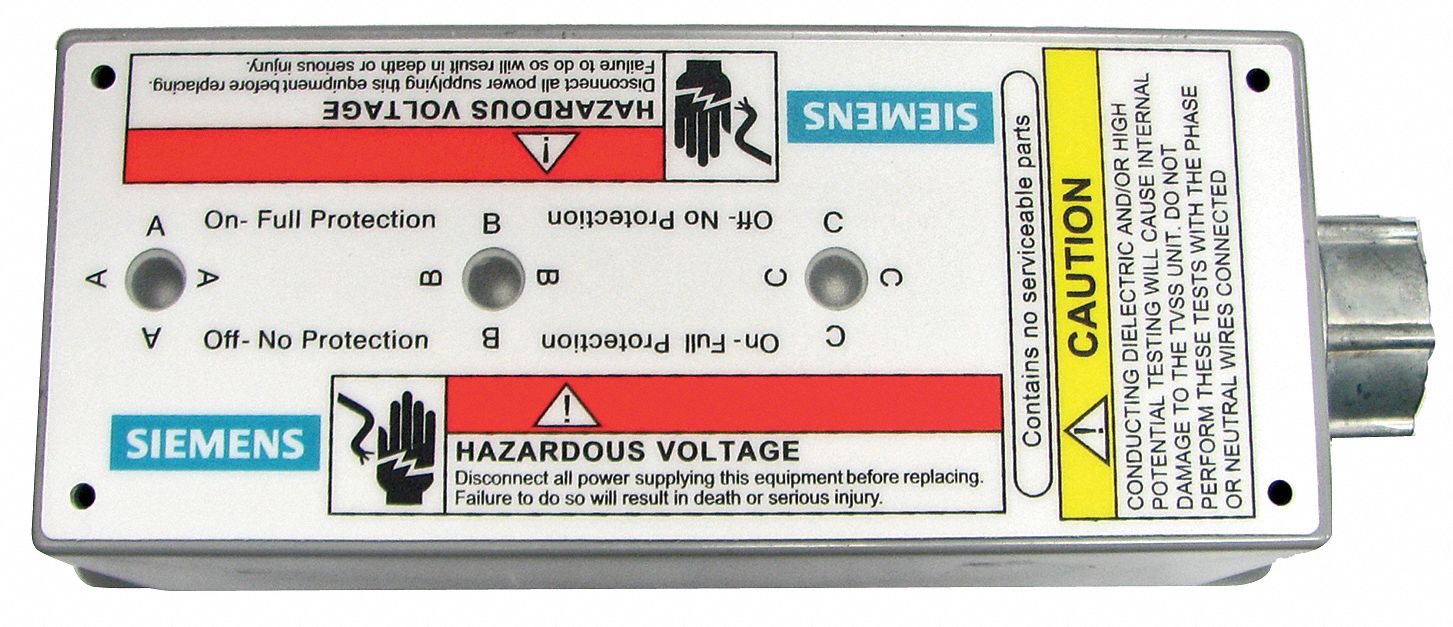

The SIEMENS Surge Protection Device is a three-phase, chase-nipple external-mount SPD with a 480V AC Delta voltage rating. It features a polycarbonate enclosure, dry contacts, a voltage protection rating of 1800V (L-G, L-L), a max. continuing operating voltage of 552 V AC, and a max. surge current per mode of 50kA (L-G).

View Product & Quote

Technical Specifications

Parameter	Value
AC	552 V
Type	1800V (L-G, L-L), 4X
Brand	SIEMENS
Voltage	480V AC Delta
AC Delta	480V
Includes	Dry Contacts
Enclosure Material	Polycarbonate
Manufacturer Part Number	TPS3F0910D00
Voltage Protection Rating	1800V (L-G, L-L)
Max. Surge Current Per Mode	50kA (L-G
Max. Continuing Operating Voltage	552 V AC
