Siemens 3G-OTH-35084 — Technical Specifications

Name: Siemens 3G-OTH-35084 SIEMENS Selector Switch: 22 mm Panel Mounting Size, 3 Positions, Short Lever, 2NO/2NC, Non-Metallic (MPN 3SU1100-2BL60-1LA0). Key specifications — AC Contact Rating: 10 A @ 600 V; Action: Maintained/Maintained/Maintained; Cam: No Cam Included; DC Contact Rating: 1 A @ 600 V; Hazardous Location Specification: Not Rated; Operator Head Material: Plastic; Operator Head Type: Short-Handled Knob; Operator Illumination: Illuminated.
Brand: Siemens

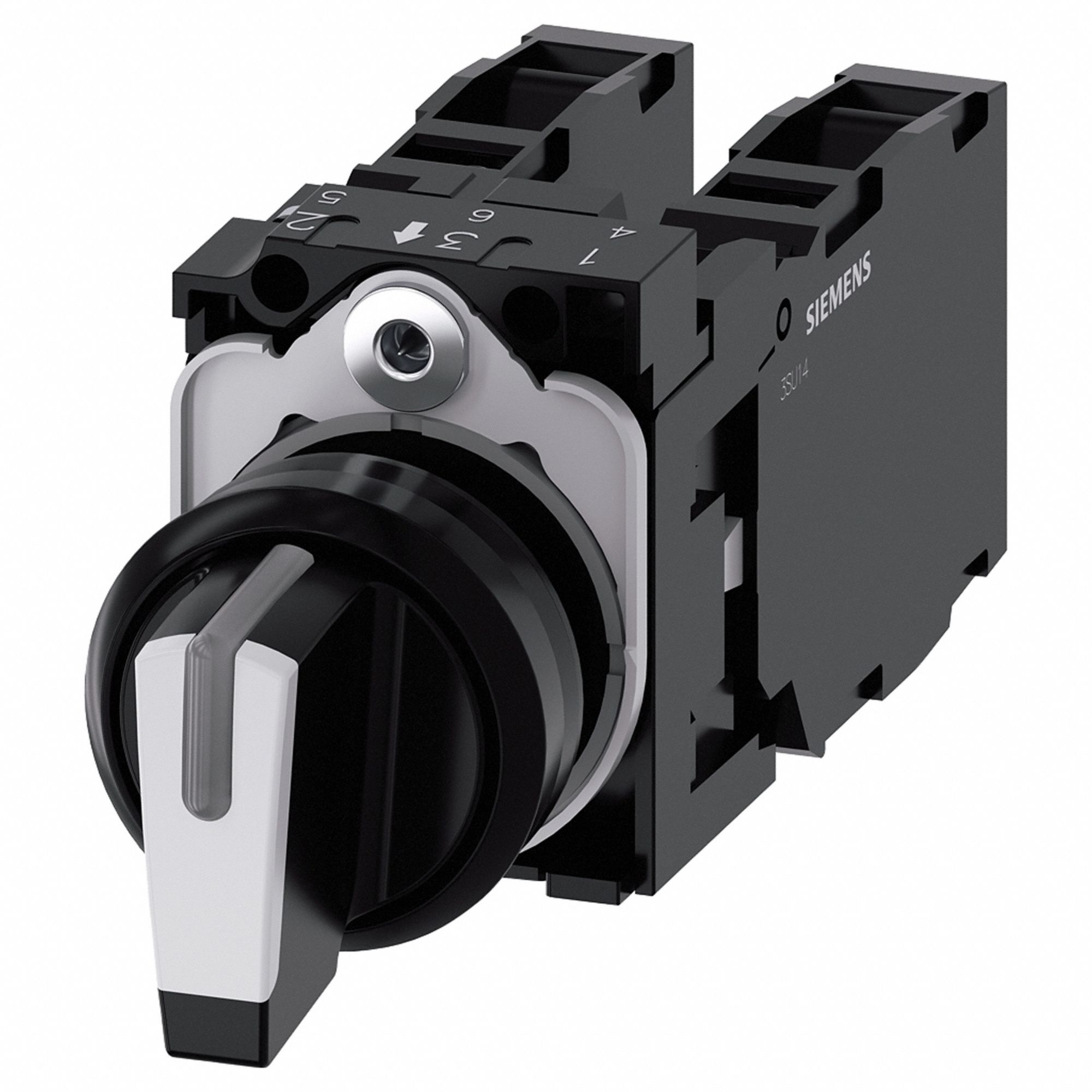

The SIEMENS Illuminated Selector Switch (SKU 411K34, MPN 3SU1100-2BL60-1LA0) is a 22 mm panel-mounting-size selector switch from the 3SU1100 series. It features a short-handled knob operator head made of plastic, with non-metallic bezel and maintained/maintained/maintained action across three positions (On/Off/On). The switch is illuminated and rated for AC 10 A @ 600 V and DC 1 A @ 600 V, with no cam included and no hazardous location rating.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	No Cam Included
Type	Short Lever, 2NO/2NC, Non-Metallic
Brand	SIEMENS
Action	Maintained/Maintained/Maintained
Series	3SU1100
Positions	3
AC Contact Rating	10 A @ 600 V
DC Contact Rating	1 A @ 600 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Illuminated
Operator Head Material	Plastic
Manufacturer Part Number	3SU1100-2BL60-1LA0
Switch Bezel Material Type	Non-Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
