Siemens 3G-OTH-67707 — Technical Specifications

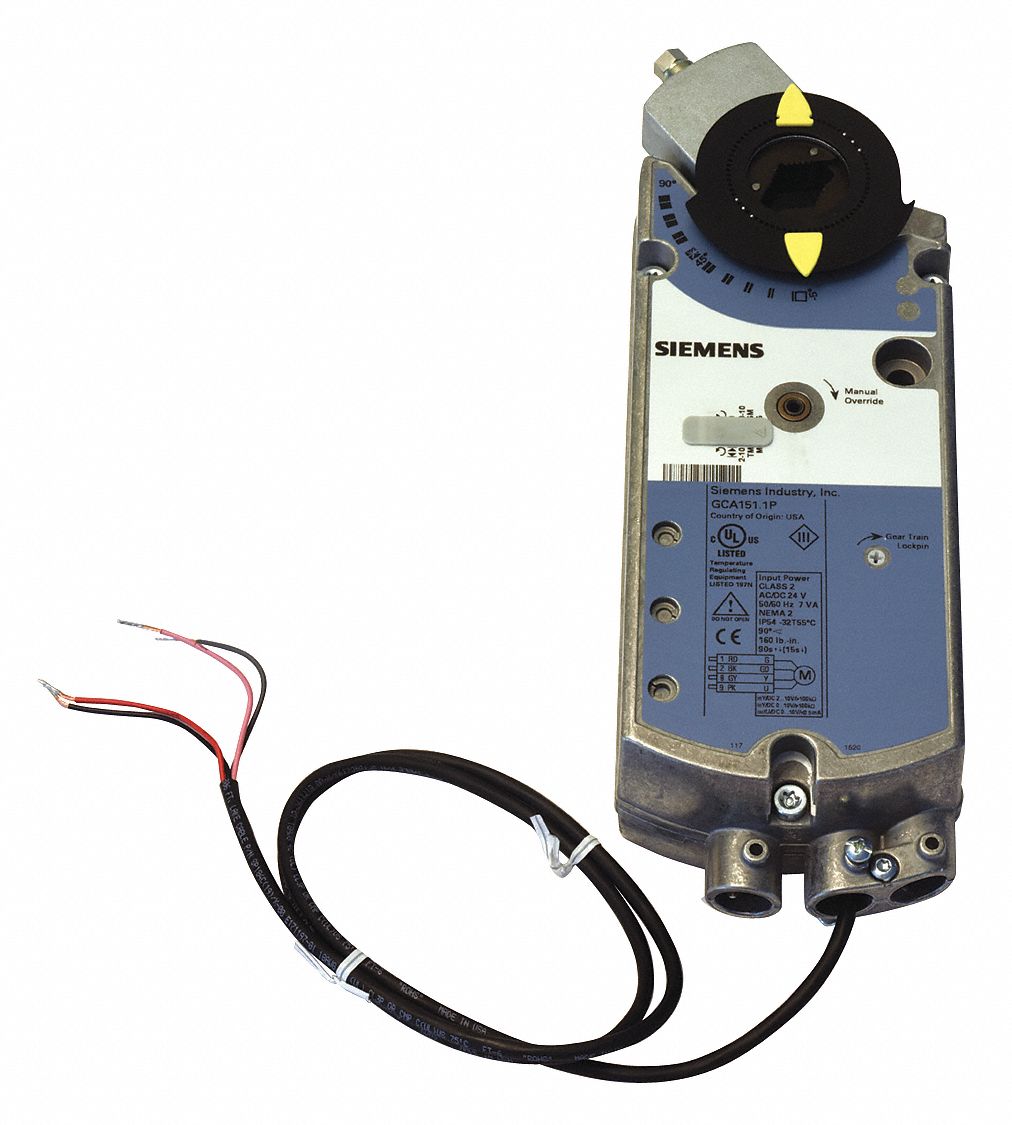

The Siemens GCA151.1P is a proportional, spring-return fail-safe damper actuator with a self-centering shaft coupling, 90° stroke, and CW/CCW rotation. It operates on 24V AC/DC input with a 5W power rating and a 0 to 10V DC output signal. This plenum-rated, hardwired actuator is designed for building automation system compatibility.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Proportional, Spring Return, 160 in-lb, Hardwired Plenum Rated Cables |
| AC/DC | 24V |
| Brand | SIEMENS |
| Shaft Type | Self-Centering Shaft Coupling |
| Power Rating | 5W |
| Input Voltage | 24V AC/DC |
| Output Signal | 0 to 10V DC |
| Plenum Rating | Plenum Rated |
| Stroke Degree | 90° |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | GCA151.1P |
| Auxiliary Switch Included | No |
| Electrical Connection Type | Hardwired |
| For Use With Building Automation Systems | Building Automation System Compatible |
