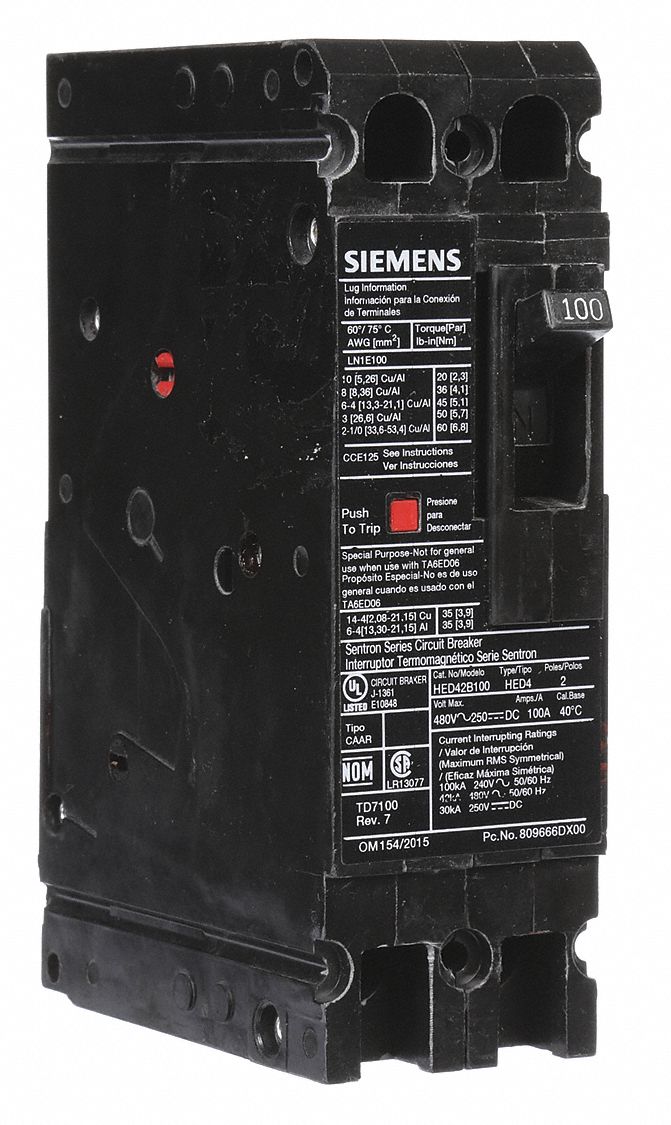

Siemens 3G-OTH-22587 — Technical Specifications

Name: Siemens 3G-OTH-22587 SIEMENS Molded Case Circuit Breaker: 100 A Amps, 42kA at 480V AC, Fixed, Load Side Lug, Any, HED4 (MPN HED42B100). Key specifications — Phase Connection: Any; Instantaneous Trip: Fixed; Terminal Connection: Load Side Lug; Series: HED4; Max. AIR Rating: 42kA at 480V AC.
Brand: Siemens

The SIEMENS Molded Case Circuit Breaker is an ED-Frame device from the HED4 series, rated for 100 A amps with a maximum AIR rating of 42kA at 480V AC. It features a fixed instantaneous trip and load side lug terminal connection, supporting any phase connection. This breaker is identified by manufacturer part number HED42B100.

View Product & Quote

Technical Specifications

Parameter	Value
Type	42kA at 480V AC, Fixed, Load Side Lug, Any, HED4
Series	HED4
Max. AIR Rating	42kA at 480V AC
Phase Connection	Any
Instantaneous Trip	Fixed
Terminal Connection	Load Side Lug
Manufacturer Part Number	HED42B100
