Siemens 3G-OTH-22089 — Technical Specifications

Name: Siemens 3G-OTH-22089 SIEMENS Molded Case Circuit Breaker: 100 A Amps, 18kA at 480V AC, Fixed, Load Side Lug, Any, ED4 (MPN ED42B100). Key specifications — Phase Connection: Any; Instantaneous Trip: Fixed; Terminal Connection: Load Side Lug; Series: ED4; Max. AIR Rating: 18kA at 480V AC.
Brand: Siemens

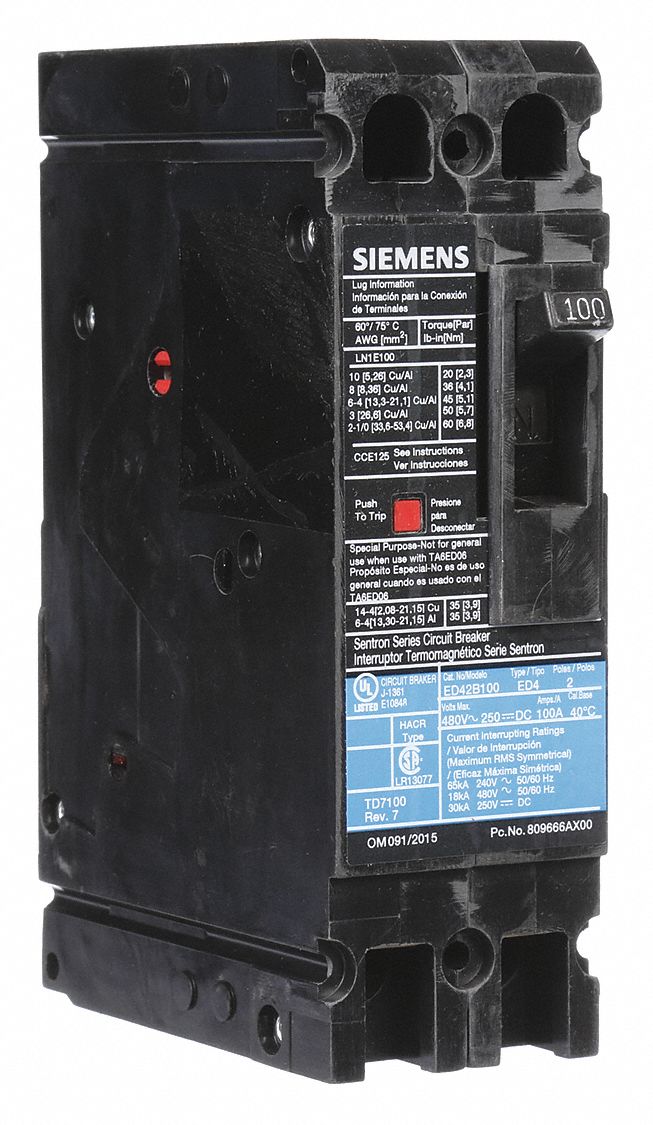

The SIEMENS ED-Frame Molded Case Circuit Breaker (SKU 3CMJ5, MPN ED42B100) is a 100 A rated device from the ED4 series. It features a fixed instantaneous trip, a maximum AIR rating of 18kA at 480V AC, and accepts any phase connection. The breaker is equipped with load-side lug terminals for wiring.

View Product & Quote

Technical Specifications

Parameter	Value
Type	18kA at 480V AC, Fixed, Load Side Lug, Any, ED4
Series	ED4
Max. AIR Rating	18kA at 480V AC
Phase Connection	Any
Instantaneous Trip	Fixed
Terminal Connection	Load Side Lug
Manufacturer Part Number	ED42B100
