Siemens 3G-OTH-20393 — Technical Specifications

Name: Siemens 3G-OTH-20393 SIEMENS IEC Supplementary Protector: 10 A Amps, 5kA at 230/400V AC, Screw Clamp, 5SY6, 230/400V AC (MPN 5SY61106). Key specifications — Brand: SIEMENS; Terminal Connection: Screw Clamp; DC Voltage Rating: Not Rated; Max. AIR Rating: 5kA at 230/400V AC; Series: 5SY6; AC Voltage Rating: 230/400V AC; Curve Type: B.
Brand: Siemens

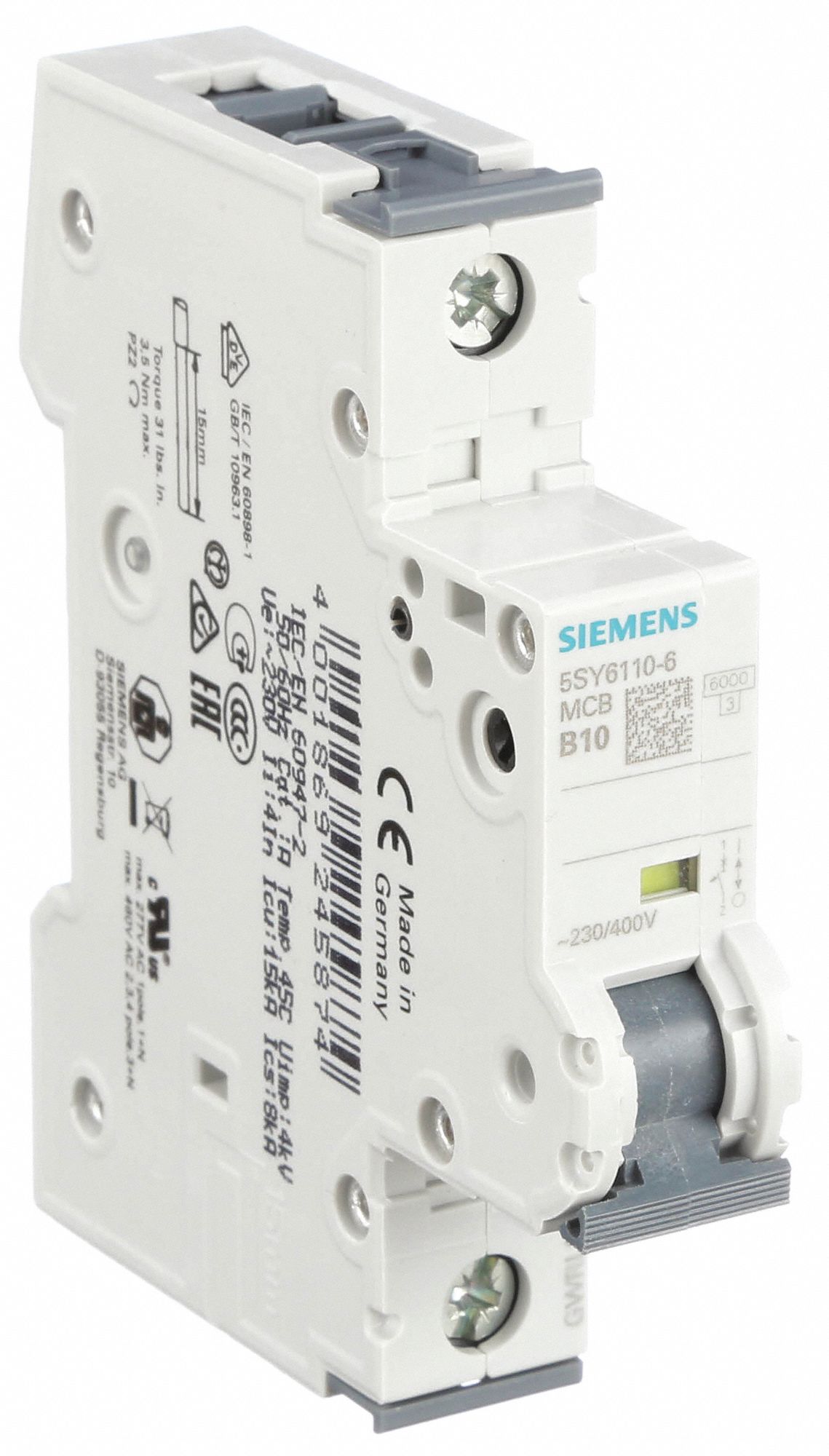

The Siemens 5SY6 series IEC Supplementary Protector is a B-curve, 1-pole UL1077 DIN rail-mount device rated for 10 A amps. It features a maximum AIR rating of 5 kA at 230/400 V AC and uses screw clamp terminals. This supplementary protector is designed for AC voltage applications at 230/400 V AC and is not rated for DC voltage.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/400V
Type	5kA at 230/400V AC, Screw Clamp, 5SY6
Brand	SIEMENS
Series	5SY6
Curve Type	B
Max. AIR Rating	5kA at 230/400V AC
AC Voltage Rating	230/400V AC
DC Voltage Rating	Not Rated
Terminal Connection	Screw Clamp
Manufacturer Part Number	5SY61106
