Siemens 3G-OTH-19711 — Technical Specifications

Name: Siemens 3G-OTH-19711 SIEMENS IEC Supplementary Protector: 6 A Amps, 5kA at 230/400V AC, Screw Clamp, 5SY6, 230/400V AC, C (MPN 5SY61067). Key specifications — Brand: SIEMENS; Terminal Connection: Screw Clamp; DC Voltage Rating: Not Rated; Max. AIR Rating: 5kA at 230/400V AC; Series: 5SY6; AC Voltage Rating: 230/400V AC; Curve Type: C.
Brand: Siemens

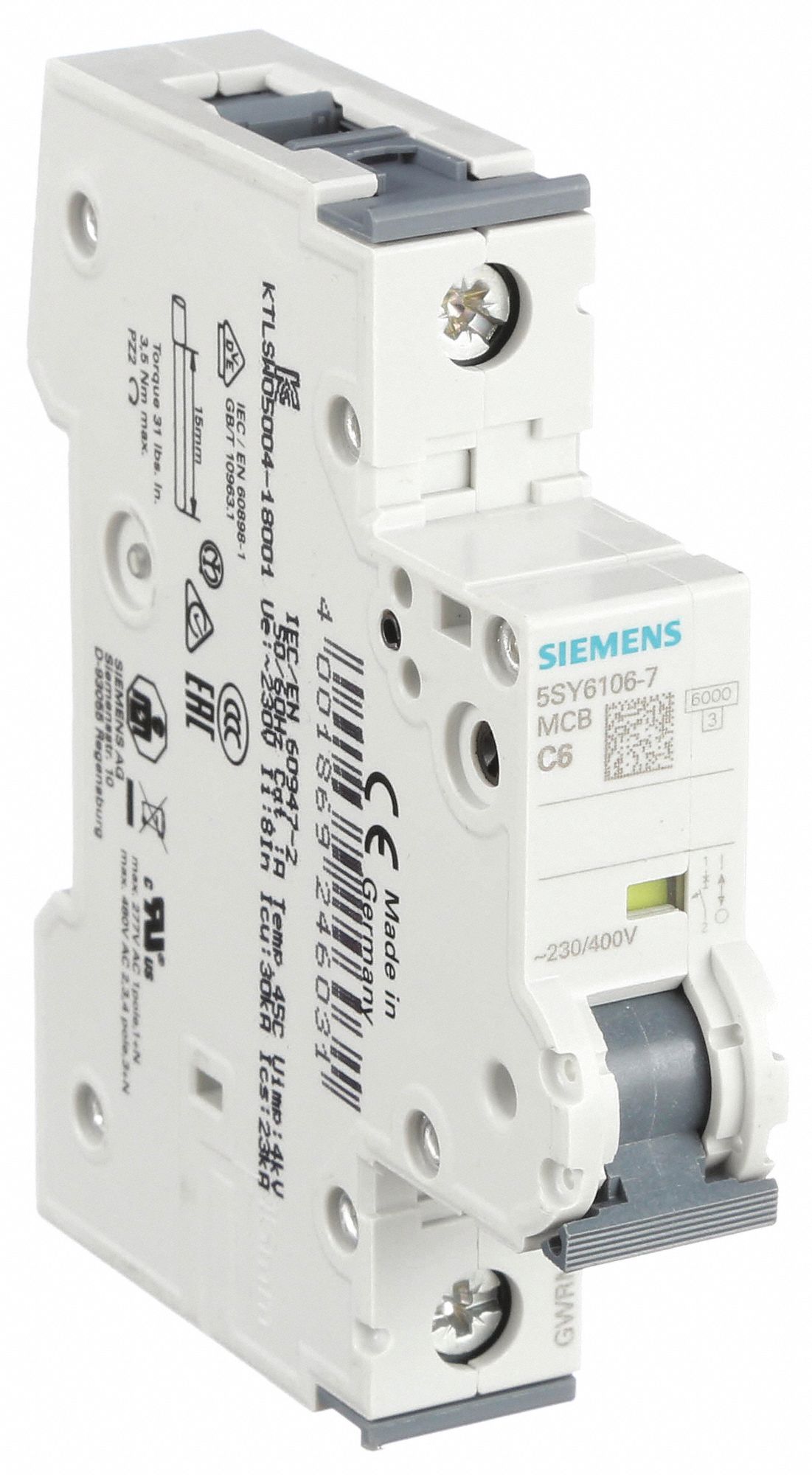

The SIEMENS IEC Supplementary Protector (SKU 30XX57) is a C-curve, 1-pole UL1077 DIN rail-mount supplementary protector rated at 6 A amps. It features a maximum AIR rating of 5kA at 230/400V AC, an AC voltage rating of 230/400V AC, and a screw clamp terminal connection. This device is part of the 5SY6 series and is not rated for DC voltage.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/400V
Type	5kA at 230/400V AC, Screw Clamp, 5SY6, C
Brand	SIEMENS
Series	5SY6
Curve Type	C
Max. AIR Rating	5kA at 230/400V AC
AC Voltage Rating	230/400V AC
DC Voltage Rating	Not Rated
Terminal Connection	Screw Clamp
Manufacturer Part Number	5SY61067
