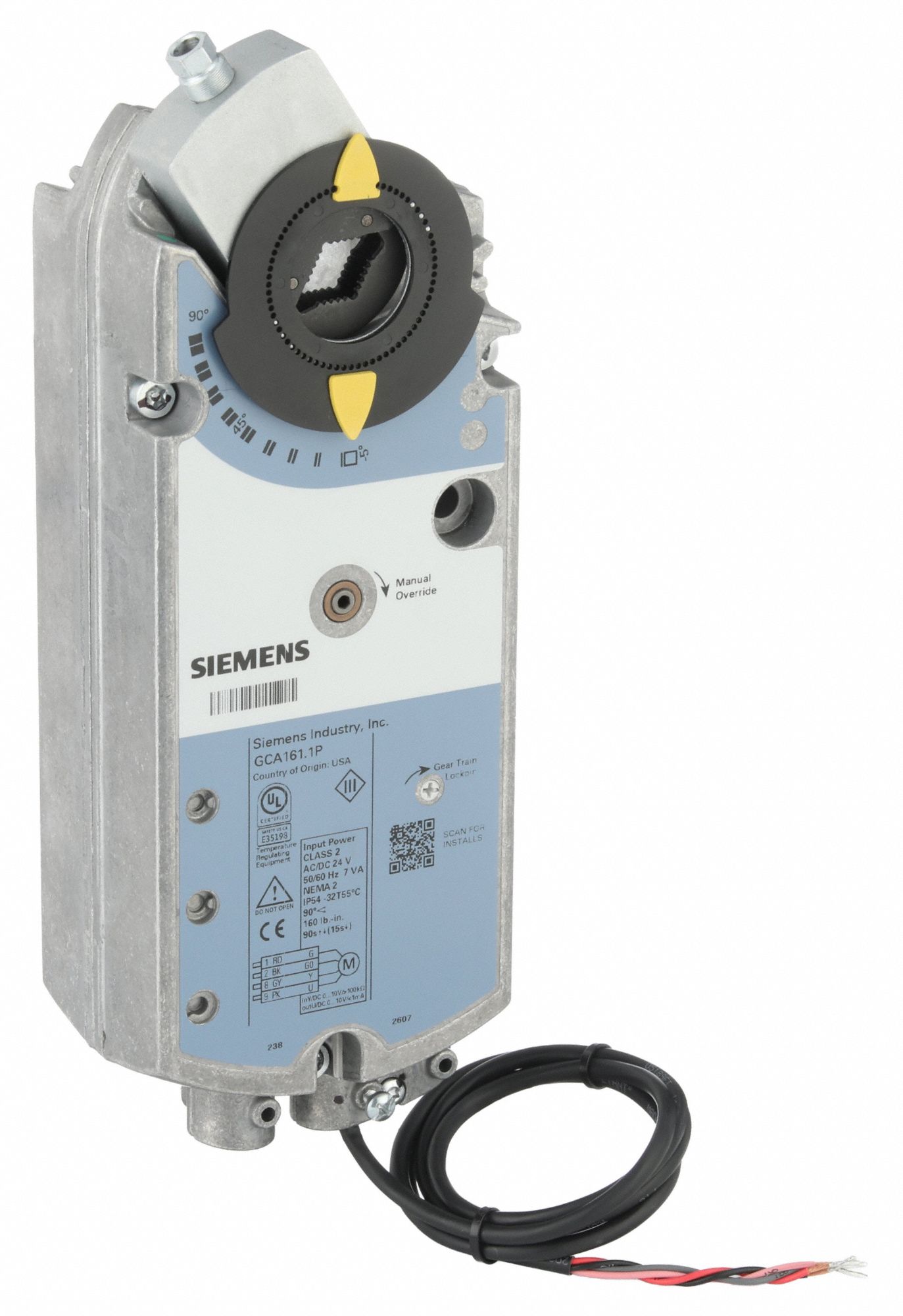

Siemens 3G-OTH-67705 — Technical Specifications

Name: Siemens 3G-OTH-67705 Actuator: Dampers, Proportional, Spring Return, 160 in-lb, 24V AC, Hardwired Plenum Rated Cables (MPN GCA161.1P). Key specifications — Manufacturer Part Number: GCA161.1P; Shaft Type: Self-Centering Shaft Coupling; Shaft Rotation: CW/CCW; Stroke Degree: 90°; Plenum Rating: Plenum Rated; Power Rating: 5W; Input Voltage: 24V AC; Brand: SIEMENS.
Brand: Siemens

The Siemens GCA161.1P is a fail-safe spring return damper actuator with a self-centering shaft coupling, 90° stroke, and CW/CCW rotation. It operates on 24V AC with a 5W power rating and provides a 0 to 10V DC proportional output signal. This plenum-rated actuator is hardwired and compatible with building automation systems.

View Product & Quote

Technical Specifications

Parameter	Value
AC	24V
Type	Proportional, Spring Return, 160 in-lb, Hardwired Plenum Rated Cables
Brand	SIEMENS
Shaft Type	Self-Centering Shaft Coupling
Power Rating	5W
Input Voltage	24V AC
Output Signal	0 to 10V DC
Plenum Rating	Plenum Rated
Stroke Degree	90°
Shaft Rotation	CW/CCW
Manufacturer Part Number	GCA161.1P
Auxiliary Switch Included	No
Electrical Connection Type	Hardwired
For Use With Building Automation Systems	Building Automation System Compatible
