Schneider Electric 3G-OTH-36333 — Technical Specifications

Name: Schneider Electric 3G-OTH-36333 SCHNEIDER ELECTRIC Selector Switch: 30 mm Panel Mounting Size, 4 Positions, Short Lever, 2NO/NC (MPN 9001KS88B 9001KA1). Key specifications — AC Contact Rating: 10 A @ 600 V; Action: Maintained/Maintained/Maintained/Maintained; Cam: E; Contact Form: 2NO/NC; DC Contact Rating: 0.55 A @ 125 V; Hazardous Location Specification: Not Rated; Operator Head Material: Metal; Operator Head Type: Short-Handled Knob.
Brand: Schneider Electric

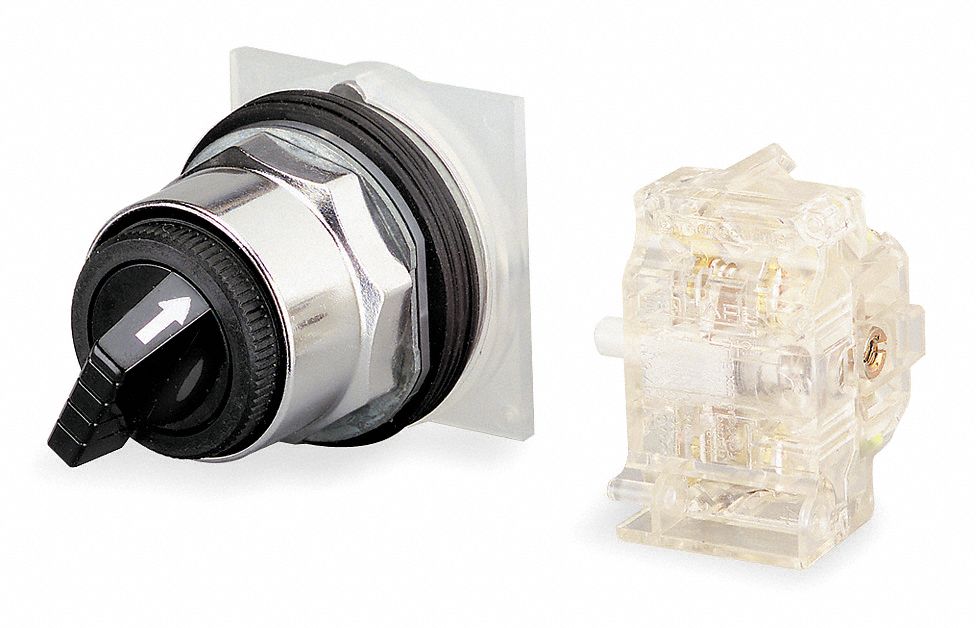

The SCHNEIDER ELECTRIC Selector Switch is a 30 mm panel-mounting device from the 9001K Series, featuring a metal short-handled knob operator head and a metallic bezel. It offers four maintained positions with a 2NO/NC contact form, an AC contact rating of 10 A @ 600 V, and a DC contact rating of 0.55 A @ 125 V, with Cam E and non-illuminated operation.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	E
Type	Short Lever, 2NO/NC
Brand	SCHNEIDER ELECTRIC
Action	Maintained/Maintained/Maintained/Maintained
Series	9001K
Positions	4
Contact Form	2NO/NC
AC Contact Rating	10 A @ 600 V
DC Contact Rating	0.55 A @ 125 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Metal
Manufacturer Part Number	9001KS88B 9001KA1
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	On
Hazardous Location Specification	Not Rated
