Schneider Electric 3G-OTH-34957 — Technical Specifications

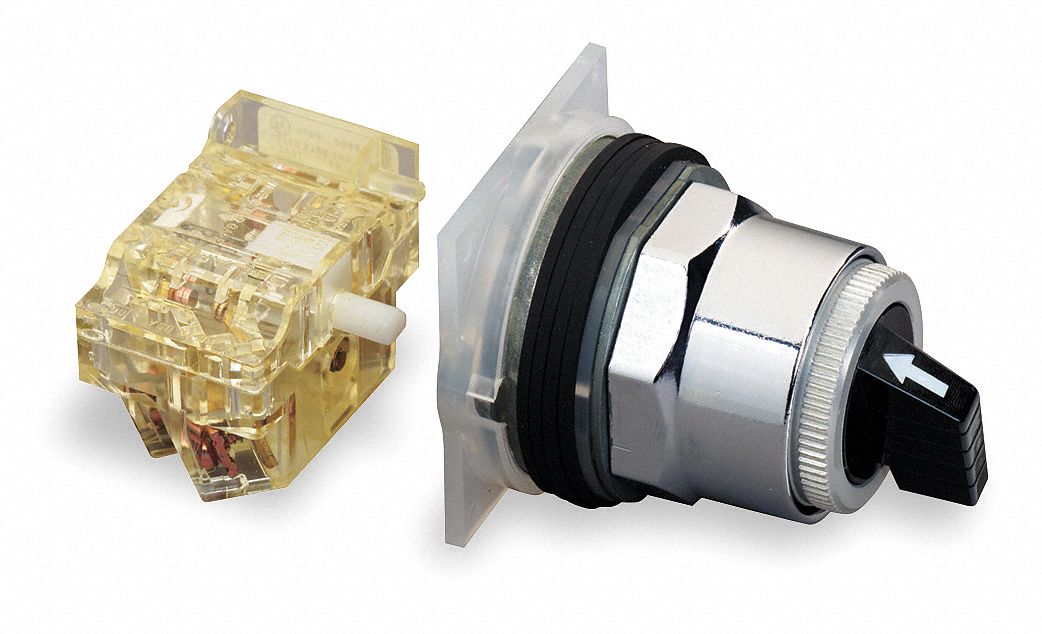

The SCHNEIDER ELECTRIC Selector Switch is a 30 mm panel-mounting-size, non-illuminated selector switch from the 9001K series. It features a metal short-handled knob operator head, a metallic bezel, and a maintained/maintained/maintained action with three On positions (no fourth position). The switch is rated for 3 A at 240 V AC and 0.55 A at 125 V DC, with a Cam F designation.
Technical Specifications
| Parameter | Value |
|---|---|
| Cam | F |
| Type | Short Lever, 1NO/1NC |
| Brand | SCHNEIDER ELECTRIC |
| Action | Maintained/Maintained/Maintained |
| Series | 9001K |
| Positions | 3 |
| AC Contact Rating | 3 A @ 240 V |
| DC Contact Rating | 0.55 A @ 125 V |
| Operator Head Type | Short-Handled Knob |
| Operator Illumination | Non-Illuminated |
| Operator Head Material | Metal |
| Manufacturer Part Number | 9001KS46B 9001KA1 |
| Switch Bezel Material Type | Metallic |
| Switch Function @ 1st Position | On |
| Switch Function @ 2nd Position | On |
| Switch Function @ 3rd Position | On |
| Switch Function @ 4th Position | No Fourth Position |
| Hazardous Location Specification | Not Rated |
