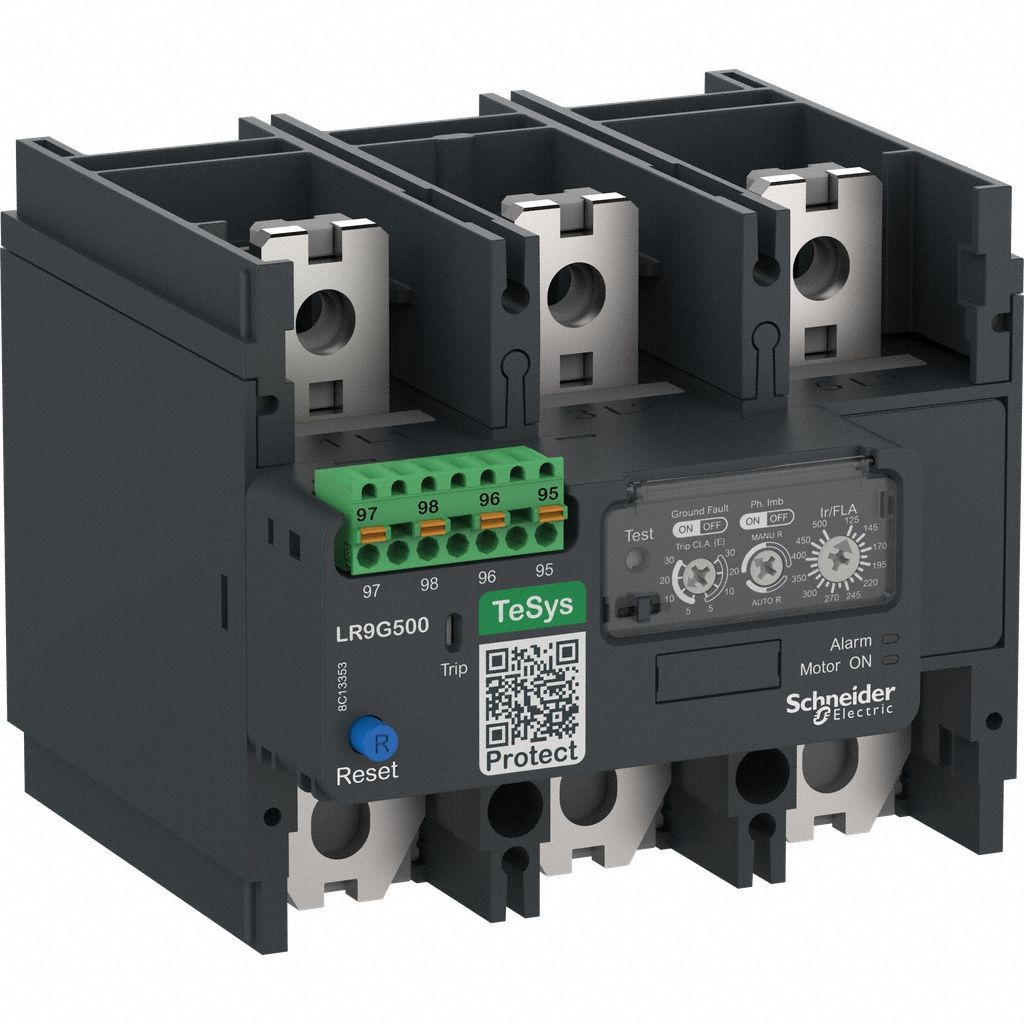

Schneider 3G-OTH-45108 — Technical Specifications

Name: Schneider 3G-OTH-45108 SCHNEIDER Overload Relay: Electronic Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity (MPN LR9G500). Key specifications — Brand: SCHNEIDER; Auxiliary Contact Form: 1NO/1NC; Compatible Contactor Series: TeSys Giga; Trip Class: 5E/30E; Terminal Connection Type: Box Lugs; Maximum Voltage Rating: 500V AC; Phase Loss Sensitivity: Yes; Thermal Units Required: Not Applicable to Electronic Type Overload Relays.
Brand: Schneider

The SCHNEIDER Overload Relay: Electronic Protection (MPN LR9G500) is an IEC electronic overload relay from the TeSys Giga series, featuring a Trip Class of 5E/30E and a maximum voltage rating of 500V AC. It includes phase loss sensitivity and auxiliary contacts in a 1NO/1NC form, with box lug terminal connections. This relay is compatible with TeSys Giga contactors (125 to 500 Amp models) and does not require thermal units.

View Product & Quote

Technical Specifications

Parameter	Value
Type	1NO/1NC, Phase Loss Sensitivity
Brand	SCHNEIDER
Poles	3
Trip Class	5E/30E
Compatible Contactors	TeSys Giga (125 to 500 Amp Models)
Auxiliary Contact Form	1NO/1NC
Maximum Voltage Rating	500V AC
Phase Loss Sensitivity	Yes
Thermal Units Required	Not Applicable to Electronic Type Overload Relays
Manufacturer Part Number	LR9G500
Terminal Connection Type	Box Lugs
Compatible Contactor Series	TeSys Giga
