Schneider 3G-OTH-41299 — Technical Specifications

Name: Schneider 3G-OTH-41299 SCHNEIDER IEC Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity (MPN DPER16). Key specifications — Brand: SCHNEIDER; Auxiliary Contact Form: 1NO/1NC; Compatible Contactor Series: Easy TeSys; Terminal Connection Type: Screw Clamp Terminals; Maximum Voltage Rating: 690V AC; Phase Loss Sensitivity: Yes; Thermal Units Required: None (Relay Includes Integrated Bimetallic Elements); Compatible Contactors: TeSys Easy (12 to 32 Amp Models).
Brand: Schneider

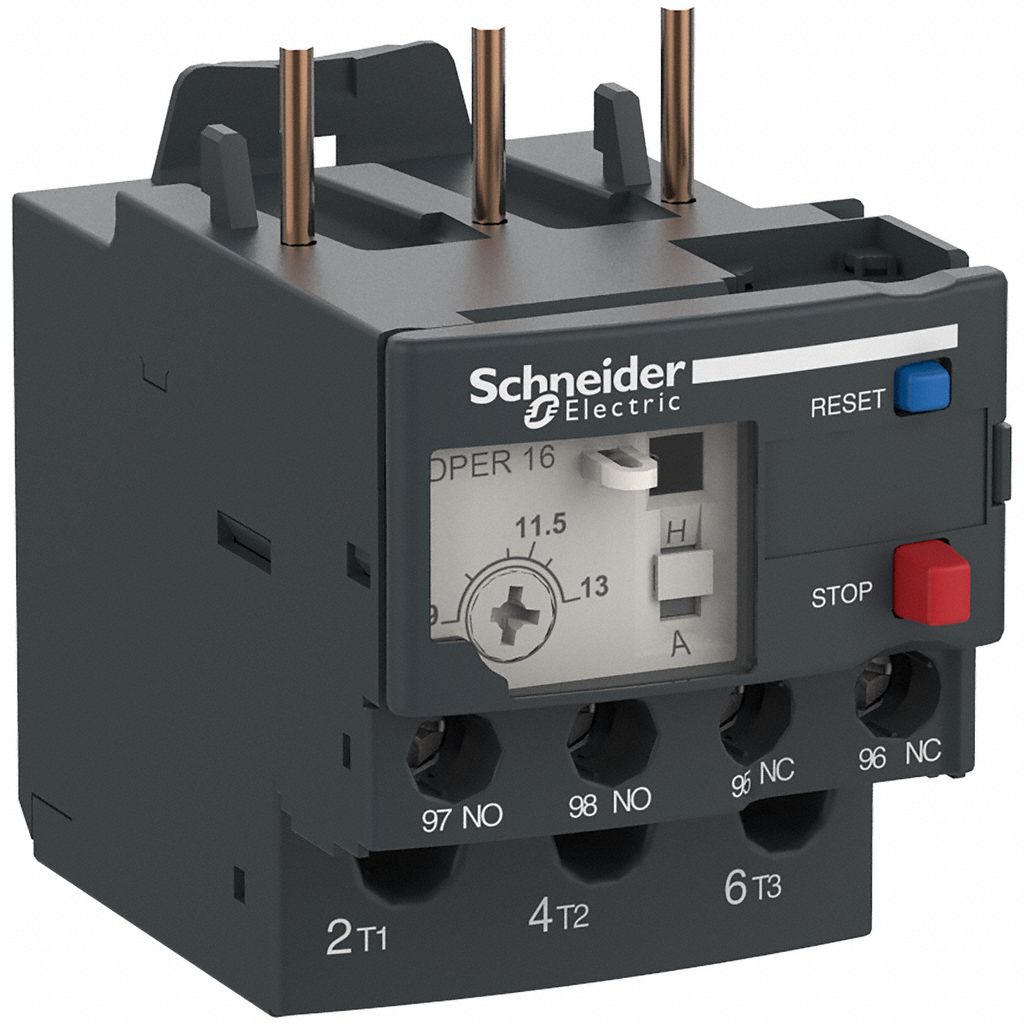

The SCHNEIDER DPER16 is an IEC thermal overload relay with integrated bimetallic elements, requiring no external thermal units. It features 1NO/1NC auxiliary contacts, a maximum voltage rating of 690V AC, and phase loss sensitivity. This 3-pole relay is compatible with TeSys Easy contactors (12 to 32 Amp models) and uses screw clamp terminals for connection.

View Product & Quote

Technical Specifications

Parameter	Value
Type	1NO/1NC, Phase Loss Sensitivity
Brand	SCHNEIDER
Poles	3
Compatible Contactors	TeSys Easy (12 to 32 Amp Models)
Auxiliary Contact Form	1NO/1NC
Maximum Voltage Rating	690V AC
Phase Loss Sensitivity	Yes
Thermal Units Required	None (Relay Includes Integrated Bimetallic Elements)
Manufacturer Part Number	DPER16
Terminal Connection Type	Screw Clamp Terminals
Compatible Contactor Series	Easy TeSys
