Schneider 3G-OTH-42098 — Technical Specifications

Name: Schneider 3G-OTH-42098 SCHNEIDER Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity, 37 A – 50 A (MPN LRD350). Key specifications — Brand: SCHNEIDER; Auxiliary Contact Form: 1NO/1NC; Compatible Contactor Series: TeSys Deca; Terminal Connection Type: Screw Clamp Terminals; Maximum Voltage Rating: 690V AC; Phase Loss Sensitivity: Yes; Thermal Units Required: None (Relay Includes Integrated Bimetallic Elements); Compatible Contactors: TeSys Deca (40 to 65 Amp Models).
Brand: Schneider

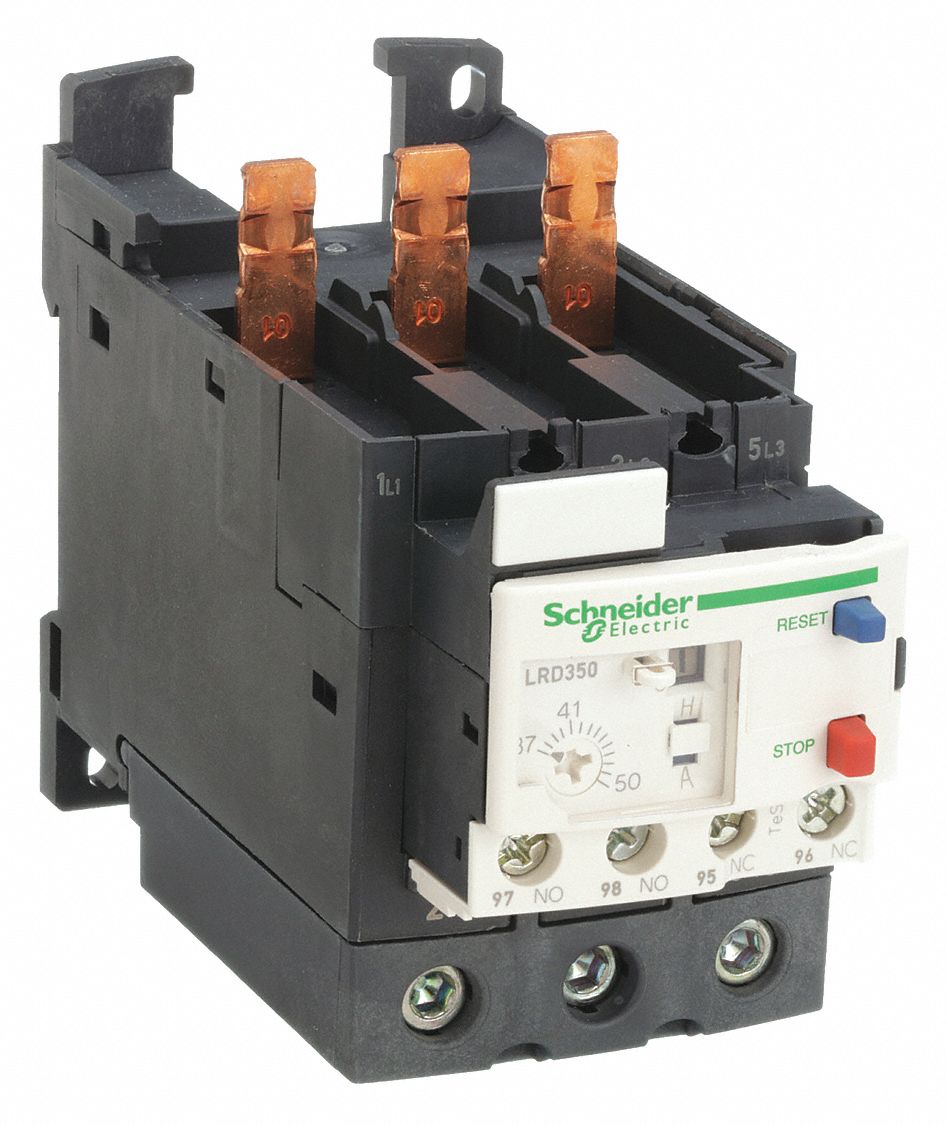

The SCHNEIDER LRD350 is an IEC thermal overload relay with integrated bimetallic elements, designed for use with TeSys Deca contactors (40 to 65 Amp models). It features a 1NO/1NC auxiliary contact configuration, phase loss sensitivity, and a maximum voltage rating of 690V AC. The relay uses screw clamp terminals and requires no external thermal units.

View Product & Quote

Technical Specifications

Parameter	Value
Type	1NO/1NC, Phase Loss Sensitivity, 37 A – 50 A
Brand	SCHNEIDER
Poles	3
Compatible Contactors	TeSys Deca (40 to 65 Amp Models)
Auxiliary Contact Form	1NO/1NC
Maximum Voltage Rating	690V AC
Phase Loss Sensitivity	Yes
Thermal Units Required	None (Relay Includes Integrated Bimetallic Elements)
Manufacturer Part Number	LRD350
Terminal Connection Type	Screw Clamp Terminals
Compatible Contactor Series	TeSys Deca
