Schneider 3G-OTH-37125 — Technical Specifications

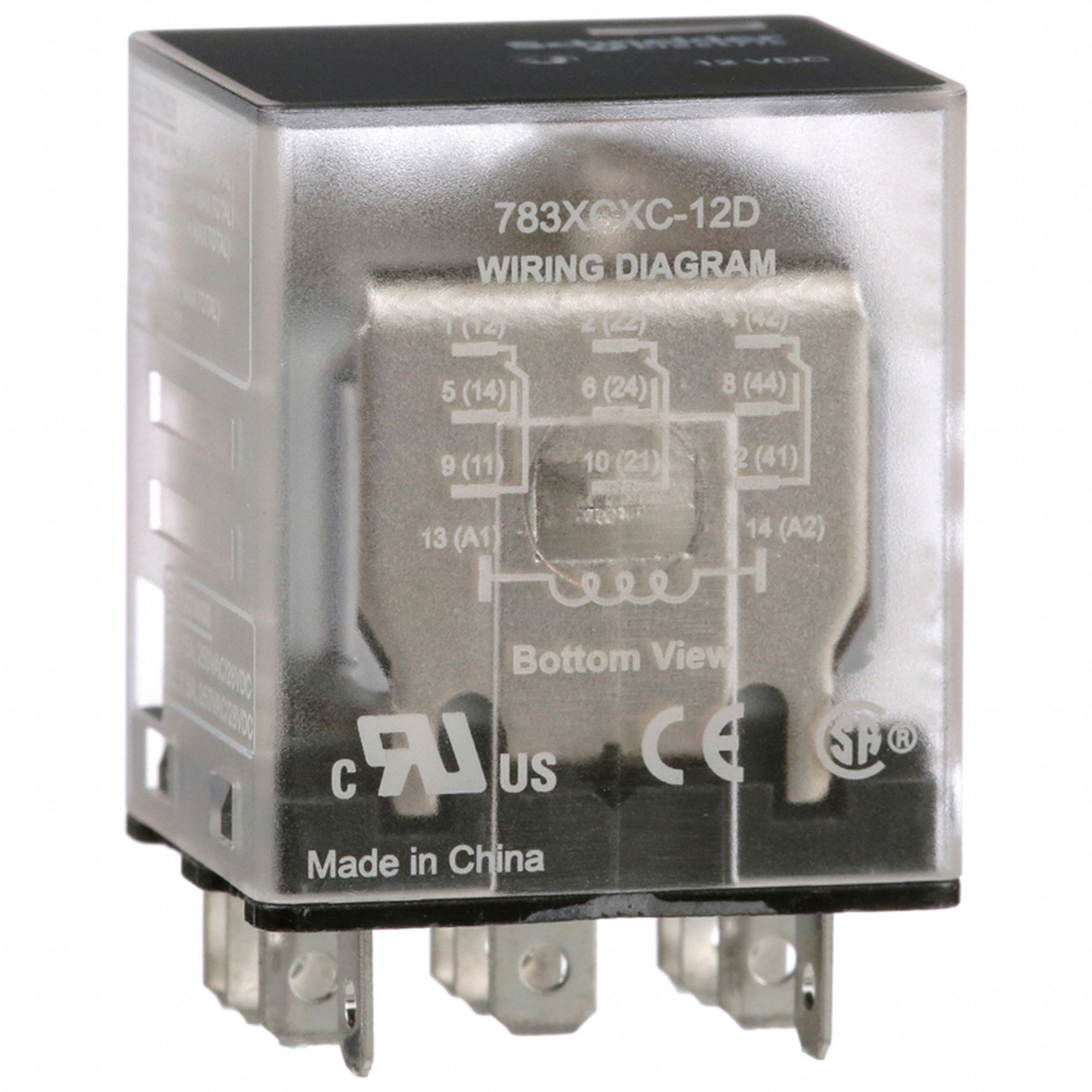

The SCHNEIDER 783 Series General Purpose Relay is a socket-mounted relay with a square base and Faston terminal electrical connection. It features a 3PDT contact configuration, a 12V DC coil, and a 15 A current rating, with an operating current of 7.55 A at 28V (NC). This relay is designed for socket mounting and is identified by manufacturer part number 783XCXC-12D.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 12V |
| Type | 3PDT, E Socket |
| Brand | SCHNEIDER |
| Series | 783 Series |
| Base Type | Square |
| Current Rating | 15 A |
| Mounting Style | Socket |
| Operating Current | 7.55 A at 28V (NC) |
| Electrical Connection | Faston Terminal |
| Manufacturer Part Number | 783XCXC-12D |
