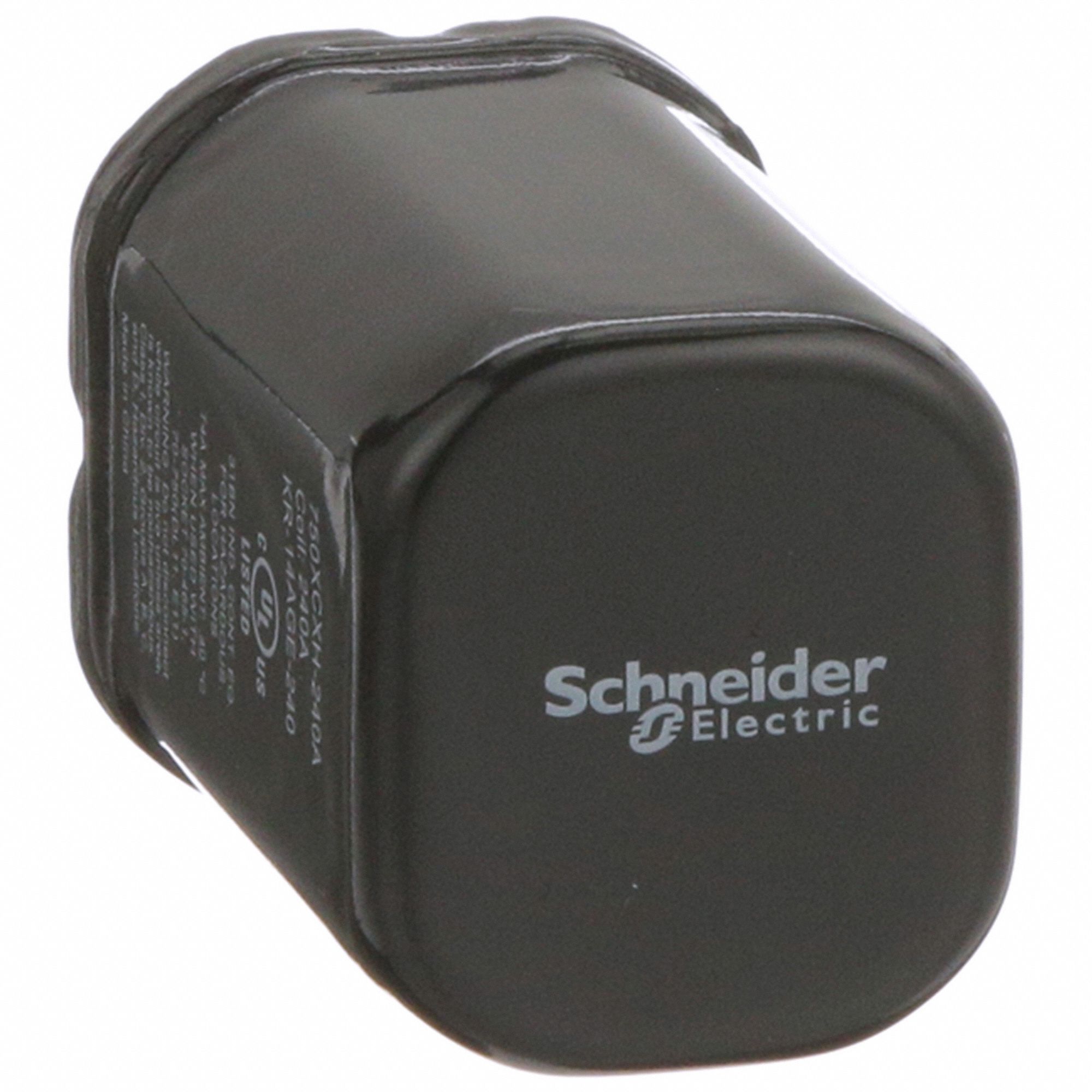

Schneider 3G-OTH-42229 — Technical Specifications

Name: Schneider 3G-OTH-42229 SCHNEIDER Hermetically Sealed Relay: Socket Mounted, 12 A Current Rating, 240V AC, 3PDT, B Socket (MPN 750XCXH-240A). Key specifications — Brand: SCHNEIDER; Base Type: Octal; Mounting Style: Socket; Pin Shape: Round; Electrical Connection: 11-Pin Terminal; Manufacturer Part Number: 750XCXH-240A; Operating Current: 12 A at 28V DC (Conforming to UL); Series: 750H Haz Location Series.
Brand: Schneider

The SCHNEIDER Hermetically Sealed Relay is a socket-mounted relay from the 750H Haz Location Series. It features an octal base with round pins and an 11-pin terminal electrical connection, rated for 12 A at 28V DC (conforming to UL) and 240V AC with a 3PDT contact configuration. This relay uses a B socket and is identified by manufacturer part number 750XCXH-240A.

View Product & Quote

Technical Specifications

Parameter	Value
AC	240V
Type	3PDT, B Socket
Brand	SCHNEIDER
Series	750H Haz Location Series
Base Type	Octal
Pin Shape	Round
Current Rating	12 A
Mounting Style	Socket
Operating Current	12 A at 28V DC (Conforming to UL)
Electrical Connection	11-Pin Terminal
Manufacturer Part Number	750XCXH-240A
