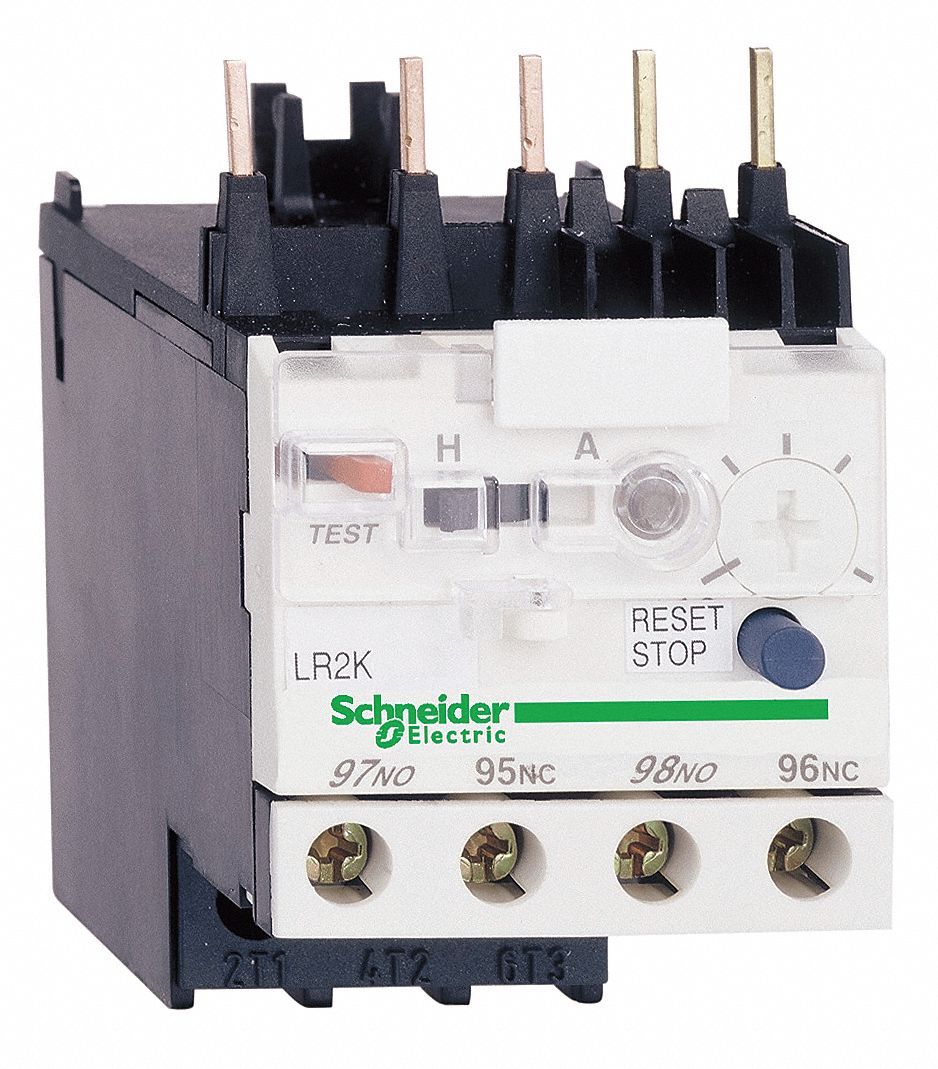

Schneider 3G-OTH-39166 — Technical Specifications
The SCHNEIDER Overload Relay: Thermal Protection (MPN LR2K0301) is a 3-pole IEC thermal overload relay with integrated bimetallic elements, eliminating the need for external thermal units. It features 1NO/1NC auxiliary contacts, a maximum signaling circuit voltage rating of 690V AC, and phase loss sensitivity. Designed for use with TeSys Deca contactors and compatible with TeSys K models, it connects via screw clamp terminals.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 1NO/1NC, Phase Loss Sensitivity |
| Brand | SCHNEIDER |
| Poles | 3 |
| Compatible Contactors | TeSys K Models |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Voltage Rating | 690V AC (Signaling Circuit) |
| Phase Loss Sensitivity | Yes |
| Thermal Units Required | None (Relay Includes Integrated Bimetallic Elements) |
| Manufacturer Part Number | LR2K0301 |
| Terminal Connection Type | Screw Clamp Terminals |
| Compatible Contactor Series | TeSys Deca |
