Schneider 3G-OTH-35115 — Technical Specifications

Name: Schneider 3G-OTH-35115 SCHNEIDER ELECTRIC Biometric Switch: 22mm, M12 Electrical Connector, PNP (MPN XB5S1B2M12). Key specifications — Connection Type: M12 Electrical Connector; Current - Maximum: 200 mA; Housing Material: Polyamide; IP Rating: IP65; Memory Storage: 200 Users With up to 2 Fingerprints per user; Response Time: Less Than 1 second; Switch Action: Maintained; Supply Voltage: 24V DC.
Brand: Schneider

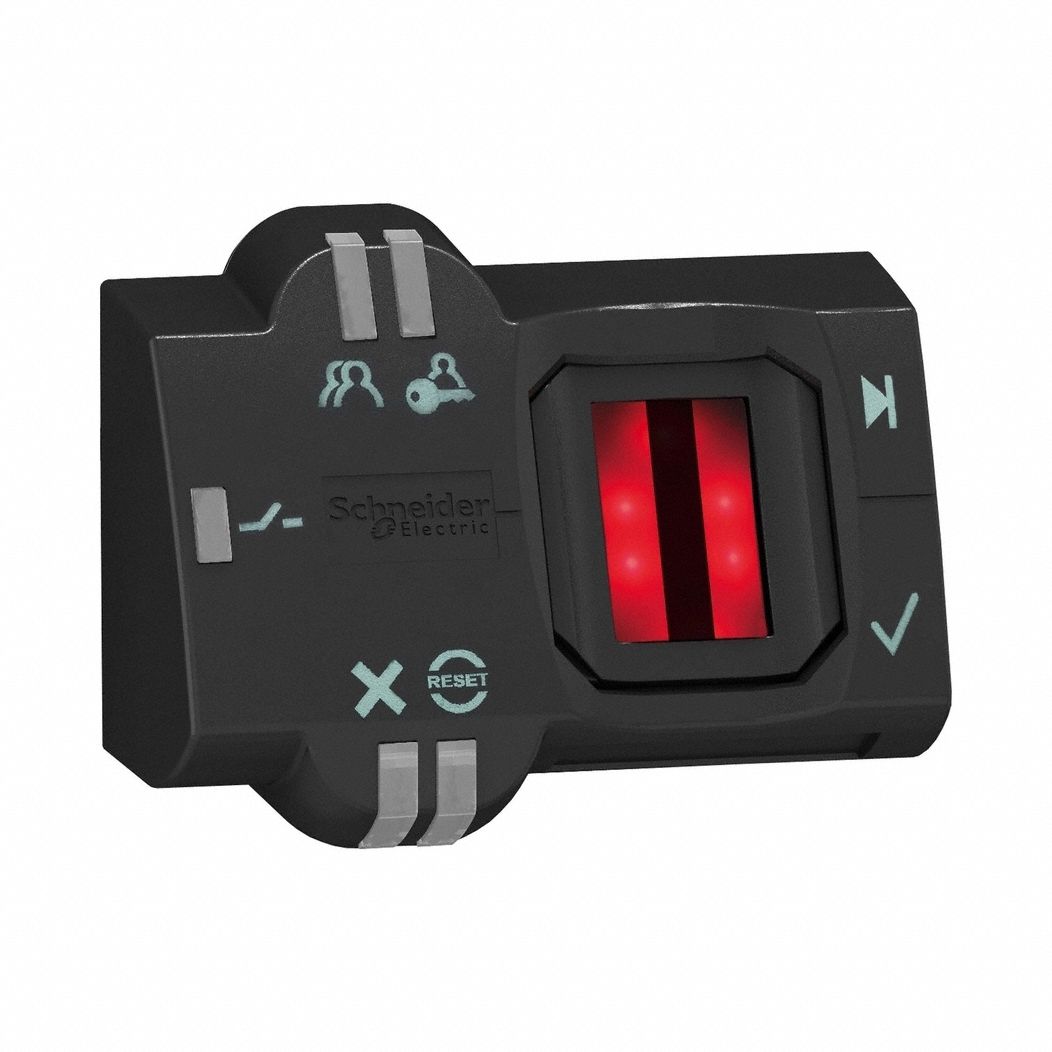

The SCHNEIDER ELECTRIC Biometric Switch (XB5S1B2M12) is a fingerprint-recognition switch from the XB5S series with a 22mm panel mounting diameter and an M12 electrical connector. It operates on 24V DC with a maximum current of 200 mA, features a maintained switch action, and offers a response time of less than 1 second. The polyamide housing provides an IP65 rating for indoor environments with dust and water droplets, and the unit stores up to 200 users with up to 2 fingerprints per user.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	SCHNEIDER
Series	XB5S
IP Rating	IP65
Response Time	Less Than 1 second
Switch Action	Maintained
Memory Storage	200 Users With up to 2 Fingerprints per user
Supply Voltage	24V DC
Connection Type	M12 Electrical Connector
Housing Material	Polyamide
Current - Maximum	200 mA
Panel Mounting Diameter	22mm
Manufacturer Part Number	XB5S1B2M12
Environments & Applications	Indoor Dust & Water Droplets
