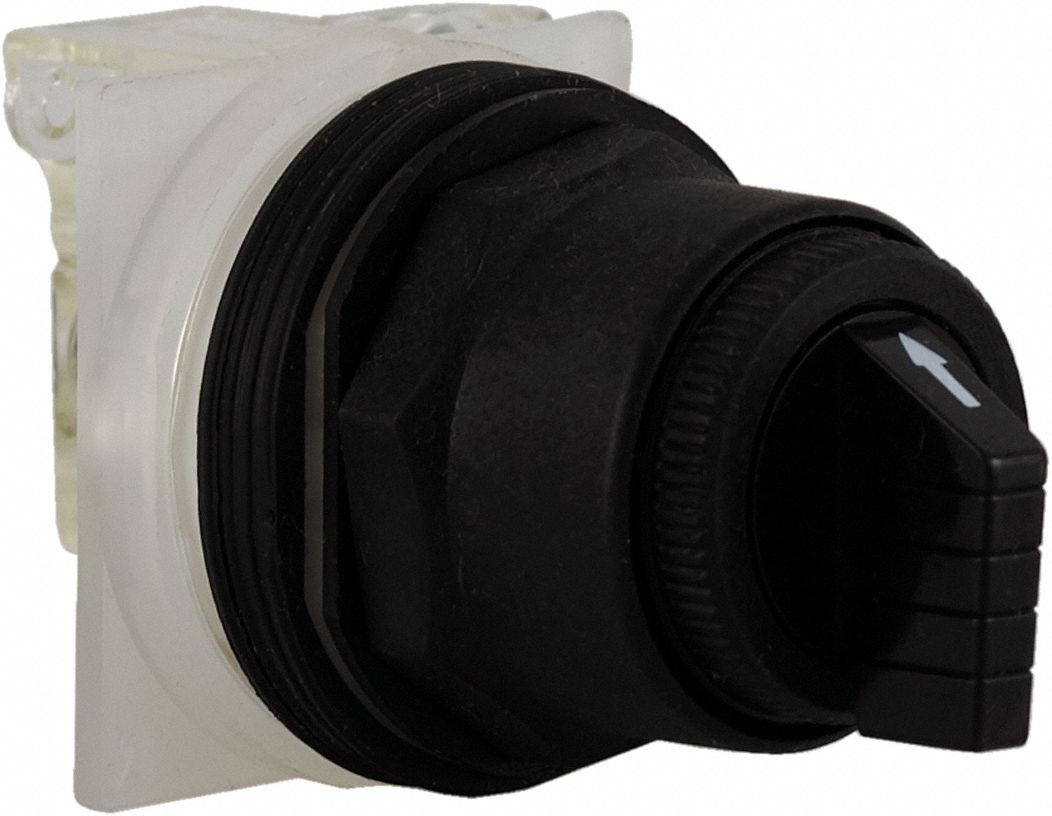

Schneider 3G-OTH-35110 — Technical Specifications

Name: Schneider 3G-OTH-35110 SCHNEIDER Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Short Lever, 1NO/1NC (MPN 9001SKS53BH1). Key specifications — AC Contact Rating: 6 A @ 120 V; Action: Momentary/Maintained/Momentary; Cam: C; DC Contact Rating: 0.55 A @125 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polycarbonate; Operator Head Type: Short-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Schneider

The SCHNEIDER Harmony 9001K selector switch (SKU 5GEP8, MPN 9001SKS53BH1) is a 30 mm panel-mounting, non-illuminated switch with a short-handled polycarbonate knob and non-metallic bezel. It features a 3-position momentary/maintained/momentary action with a C cam, rated at 6 A @ 120 V AC and 0.55 A @ 125 V DC, and is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	C
Type	Short Lever, 1NO/1NC
Brand	SCHNEIDER
Action	Momentary/Maintained/Momentary
Series	Harmony 9001K
Positions	3
AC Contact Rating	6 A @ 120 V
DC Contact Rating	0.55 A @125 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polycarbonate
Manufacturer Part Number	9001SKS53BH1
Switch Bezel Material Type	Non-Metallic
Switch Function @ 1st Position	Momentary
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	Momentary
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
