Schneider 3G-OTH-28420 — Technical Specifications

Name: Schneider 3G-OTH-28420 SCHNEIDER ELECTRIC Pendant Control Station: (2) Push Buttons, 1NO/1NC, Up/Down, NEMA 4 (MPN 9001BW92YY236). Key specifications — AC Contact Rating: 0.6 A @ 600 V; Action: Momentary/Momentary; DC Contact Rating: 1.1 A @ 120 V; Enclosure Material: Thermoplastic; Hub Style: Dead-End; Legend: Up/Down; Operator Configuration: (2) Push Buttons; Brand: SCHNEIDER.
Brand: Schneider

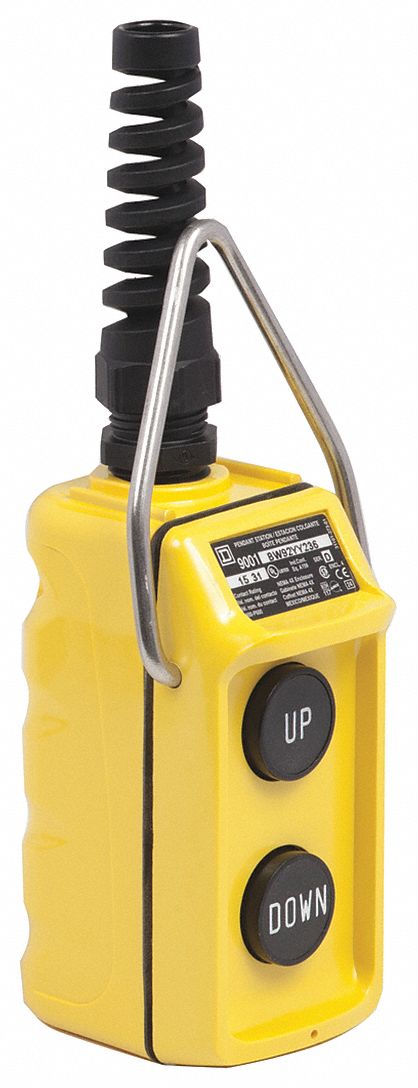

The SCHNEIDER ELECTRIC Pendant Control Station (SKU 55WP71) is a push-button pendant from the 9001BW Series, featuring a momentary/momentary action with Up/Down legend. It has a dead-end hub style, a thermoplastic enclosure, and operator configuration of (2) push buttons. The AC contact rating is 0.6 A @ 600 V, and the DC contact rating is 1.1 A @ 120 V.

View Product & Quote

Technical Specifications

Parameter	Value
Type	1NO/1NC, Up/Down, NEMA 4
Brand	SCHNEIDER
Action	Momentary/Momentary
Legend	Up/Down
Series	9001BW
Hub Style	Dead-End
AC Contact Rating	0.6 A @ 600 V
DC Contact Rating	1.1 A @ 120 V
Enclosure Material	Thermoplastic
Operator Configuration	(2) Push Buttons
Manufacturer Part Number	9001BW92YY236
Operator Configuration Type	(2) Push Buttons
