Schneider 3G-OTH-40813 — Technical Specifications

Name: Schneider 3G-OTH-40813 SCHNEIDER IEC Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC (MPN LR3D325). Key specifications — Brand: SCHNEIDER; Auxiliary Contact Form: 1NO/1NC; Compatible Contactor Series: TeSys Deca; Terminal Connection Type: Screw Clamp Terminals; Maximum Voltage Rating: 690V AC; Phase Loss Sensitivity: No; Thermal Units Required: None (Relay Includes Integrated Bimetallic Elements).
Brand: Schneider

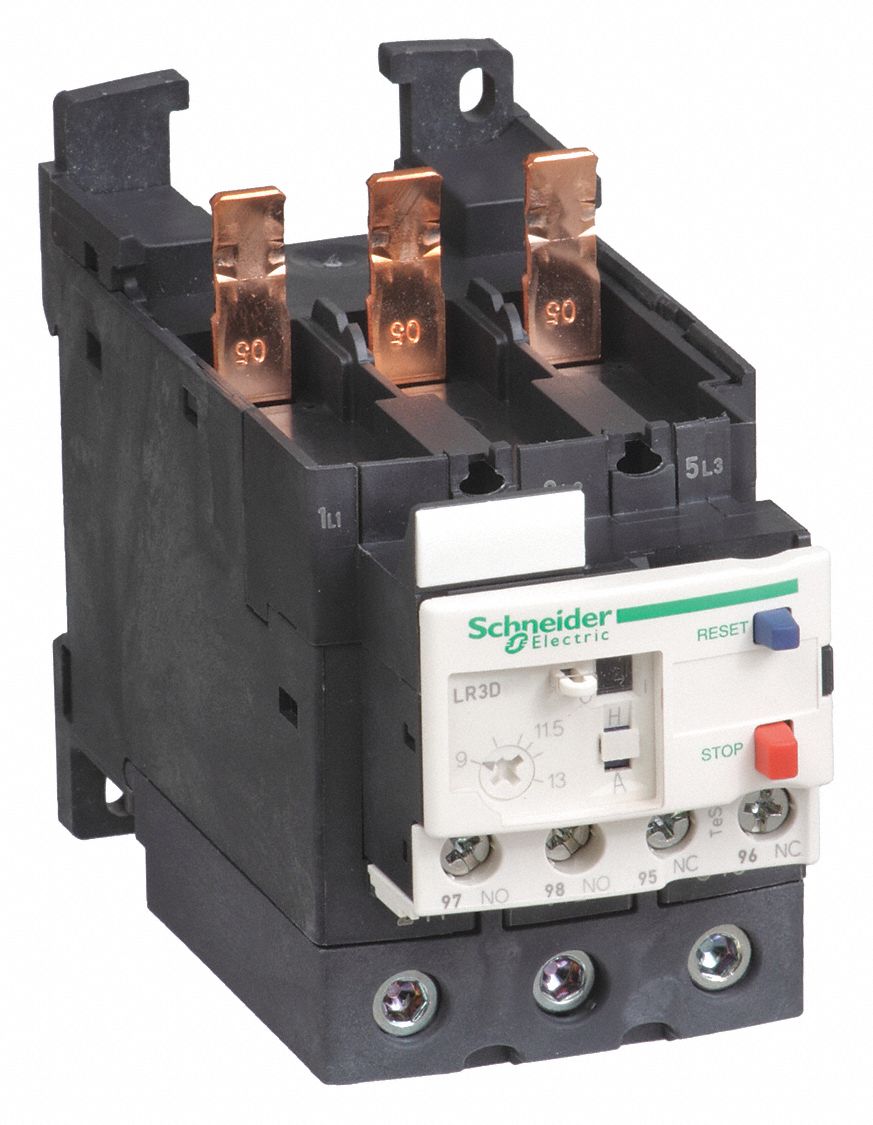

The SCHNEIDER IEC Overload Relay (MPN LR3D325) is a three-pole thermal protection relay with integrated bimetallic elements, eliminating the need for external thermal units. It features a 1NO/1NC auxiliary contact configuration, screw clamp terminals, and a maximum voltage rating of 690V AC. This relay is compatible with the TeSys Deca contactor series and does not include phase loss sensitivity.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	SCHNEIDER
Auxiliary Contact Form	1NO/1NC
Maximum Voltage Rating	690V AC
Phase Loss Sensitivity	No
Thermal Units Required	None (Relay Includes Integrated Bimetallic Elements)
Manufacturer Part Number	LR3D325
Terminal Connection Type	Screw Clamp Terminals
Compatible Contactor Series	TeSys Deca
