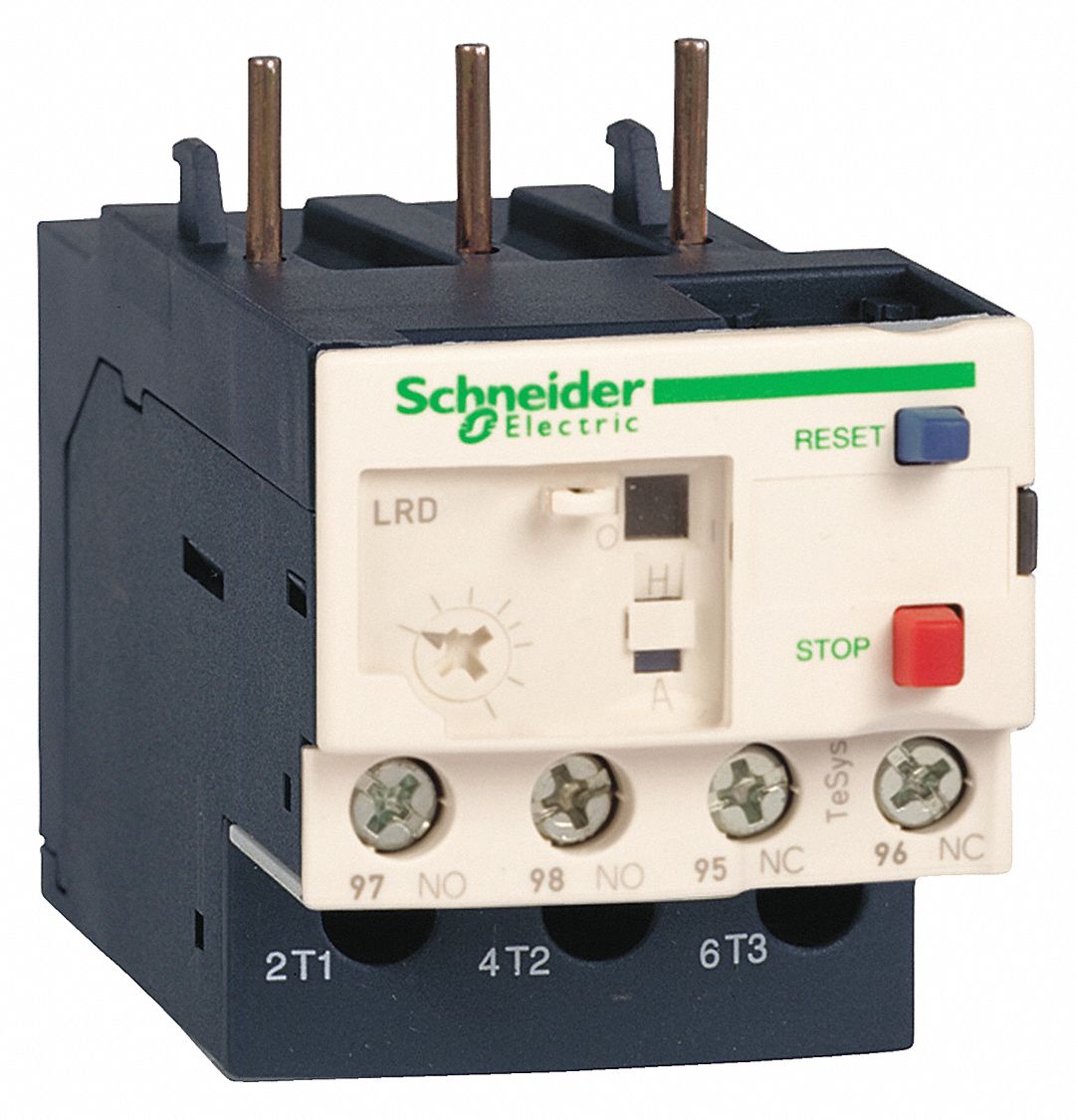

Schneider 3G-OTH-40649 — Technical Specifications

Name: Schneider 3G-OTH-40649 SCHNEIDER IEC Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, TeSys Deca (25 to 38 Amp Models) (MPN LR3D22). Key specifications — Brand: SCHNEIDER; Auxiliary Contact Form: 1NO/1NC; Compatible Contactor Series: TeSys Deca; Terminal Connection Type: Screw Clamp Terminals; Maximum Voltage Rating: 690V AC; Phase Loss Sensitivity: No; Thermal Units Required: None (Relay Includes Integrated Bimetallic Elements); Compatible Contactors: TeSys Deca (25 to 38 Amp Models).
Brand: Schneider

The SCHNEIDER IEC Overload Relay: Thermal Protection (MPN LR3D22) is a three-pole thermal overload relay with integrated bimetallic elements, requiring no external thermal units. It features a 1NO/1NC auxiliary contact configuration, screw clamp terminals, and a maximum voltage rating of 690V AC. This relay is designed for use with TeSys Deca contactors in the 25 to 38 Amp models and does not include phase loss sensitivity.

View Product & Quote

Technical Specifications

Parameter	Value
Type	1NO/1NC, TeSys Deca (25 to 38 Amp Models)
Brand	SCHNEIDER
Poles	3
Compatible Contactors	TeSys Deca (25 to 38 Amp Models)
Auxiliary Contact Form	1NO/1NC
Maximum Voltage Rating	690V AC
Phase Loss Sensitivity	No
Thermal Units Required	None (Relay Includes Integrated Bimetallic Elements)
Manufacturer Part Number	LR3D22
Terminal Connection Type	Screw Clamp Terminals
Compatible Contactor Series	TeSys Deca
