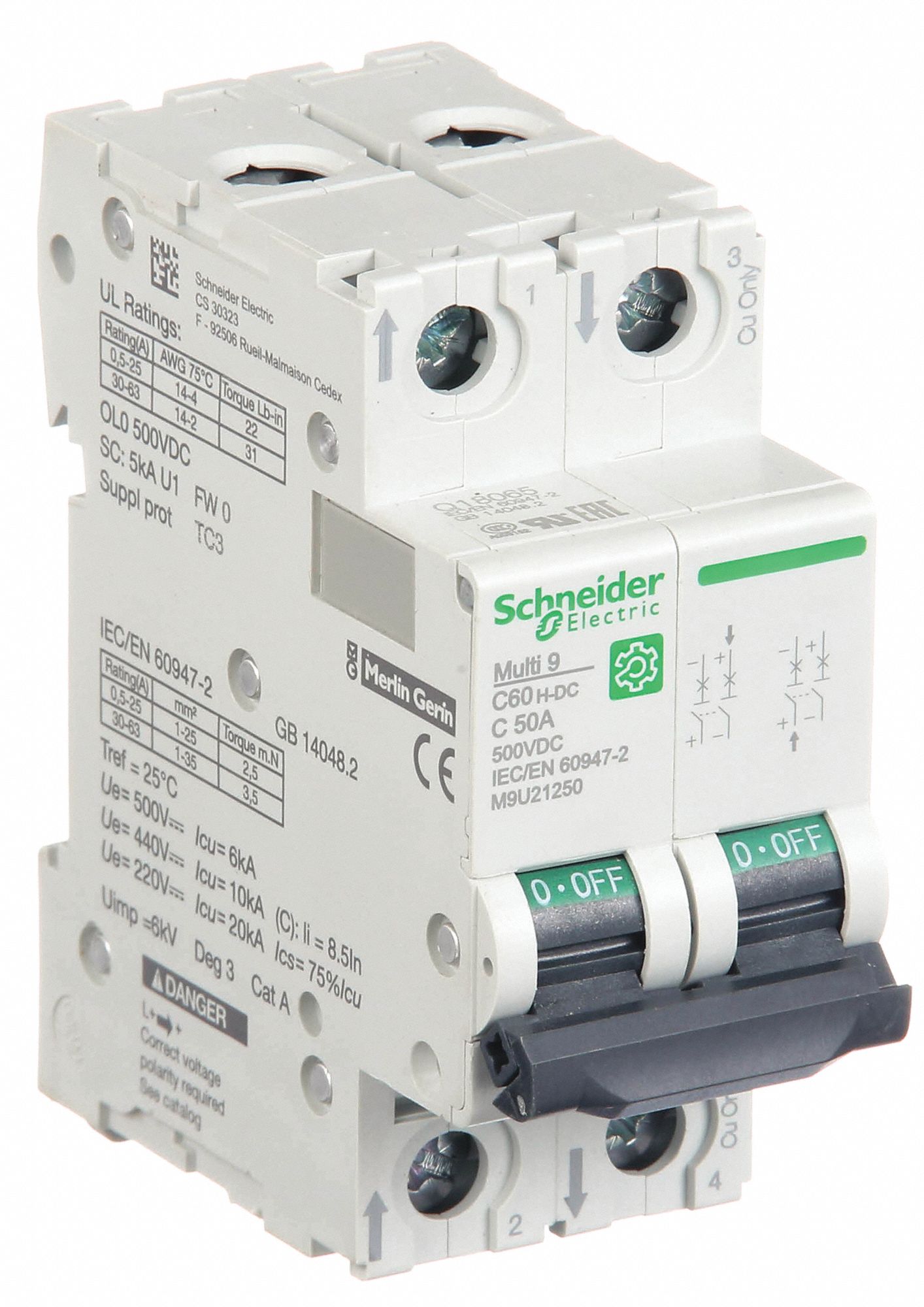

Schneider 3G-OTH-22283 — Technical Specifications

Name: Schneider 3G-OTH-22283 SCHNEIDER IEC Supplementary Protector: 50 A Amps, 500V DC, 5kA at 250V DC, Screw Clamp, C60H-DC, C (MPN M9U21250). Key specifications — Terminal Connection: Screw Clamp; AC Voltage Rating: Not Rated; Curve Type: C; DC Voltage Rating: 500V DC; Max. AIR Rating: 5kA at 250V DC; Series: C60H-DC; Brand: SCHNEIDER.
Brand: Schneider

The SCHNEIDER IEC Supplementary Protector is a DC-only rated, 2-pole UL1077 DIN rail-mount supplementary protector from the C60H-DC series. It is rated for 50 A amps, 500V DC, with a Max. AIR Rating of 5kA at 250V DC, a C curve type, and screw clamp terminals (MPN M9U21250). This device is not rated for AC voltage.

View Product & Quote

Technical Specifications

Parameter	Value
DC	500V
Type	5kA at 250V DC, Screw Clamp, C60H-DC, C
Brand	SCHNEIDER
Series	C60H-DC
Curve Type	C
Max. AIR Rating	5kA at 250V DC
AC Voltage Rating	Not Rated
DC Voltage Rating	500V DC
Terminal Connection	Screw Clamp
Manufacturer Part Number	M9U21250
