Schneider 3G-OTH-36558 — Technical Specifications

Name: Schneider 3G-OTH-36558 SCHNEIDER Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Short Lever, 2NO/2NC (MPN 9001SKS49BH2). Key specifications — AC Contact Rating: 1.2 A @ 600 V; Action: Maintained/Maintained/Maintained; Cam: J; DC Contact Rating: 0.1 A @ 600 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polycarbonate; Operator Head Type: Short-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Schneider

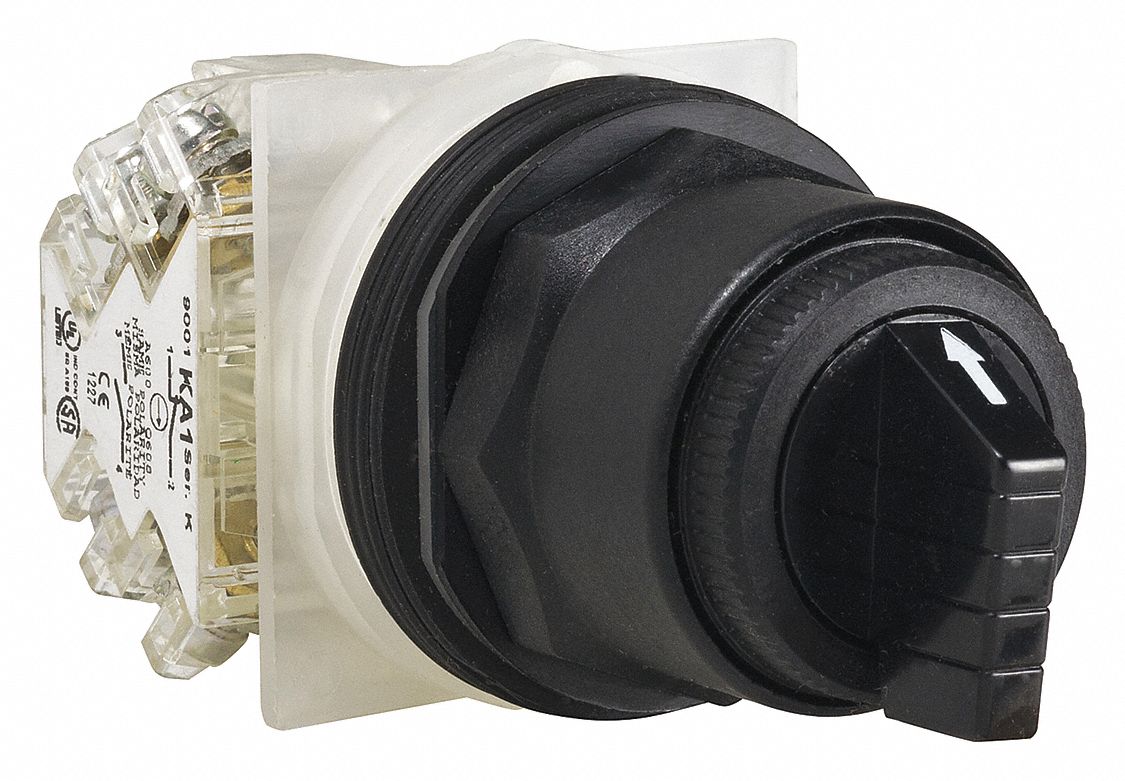

The SCHNEIDER 9001SKS49BH2 is a 30 mm panel-mount selector switch from the 9001K series, featuring a short-handled knob with a non-illuminated polycarbonate operator head and a non-metallic bezel. It offers three maintained positions (On/Off/On) with a J cam, and is rated for AC contacts at 1.2 A @ 600 V and DC contacts at 0.1 A @ 600 V. This switch is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	J
Type	Short Lever, 2NO/2NC
Brand	SCHNEIDER
Action	Maintained/Maintained/Maintained
Series	9001K
Positions	3
AC Contact Rating	1.2 A @ 600 V
DC Contact Rating	0.1 A @ 600 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polycarbonate
Manufacturer Part Number	9001SKS49BH2
Switch Bezel Material Type	Non-Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
