Schneider 3G-OTH-36909 — Technical Specifications

Name: Schneider 3G-OTH-36909 SCHNEIDER Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Short Lever, 1NC/1NO (MPN 9001SKS43BH13). Key specifications — AC Contact Rating: 1.2 A @ 600 V; Action: Maintained/Maintained/Maintained; Cam: C; DC Contact Rating: 0.55 A @125 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polycarbonate; Operator Head Type: Short-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Schneider

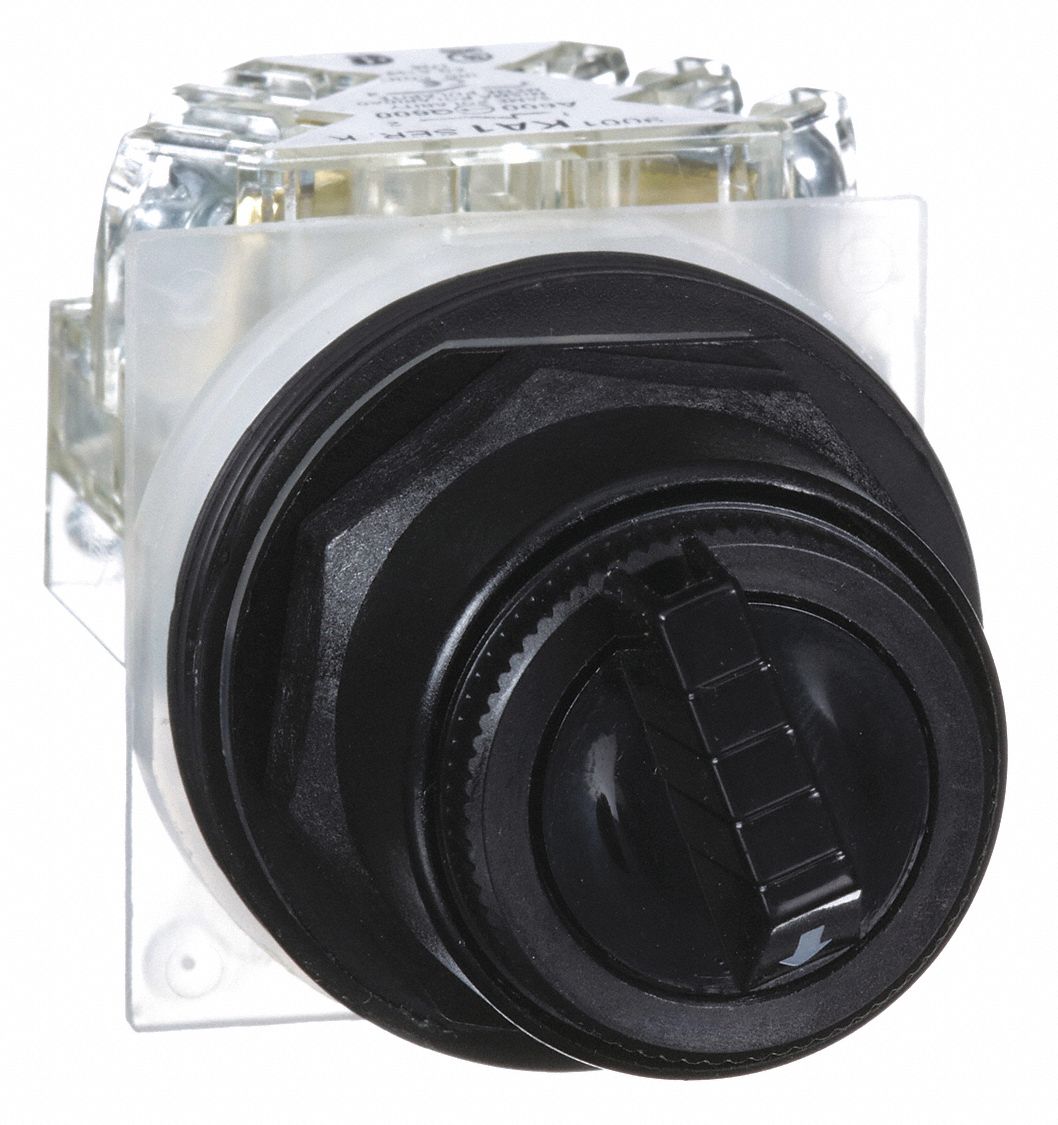

The SCHNEIDER Harmony 9001K Selector Switch (SKU 45J170, MPN 9001SKS43BH13) is a 30 mm panel-mounting, non-illuminated selector switch with a short-handled knob and polycarbonate operator head. It features three maintained positions (On/Off/On) with a Cam C action, and is rated for AC 1.2 A @ 600 V and DC 0.55 A @ 125 V. The switch has a non-metallic bezel and is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	C
Type	Short Lever, 1NC/1NO
Brand	SCHNEIDER
Action	Maintained/Maintained/Maintained
Series	Harmony 9001K
Positions	3
AC Contact Rating	1.2 A @ 600 V
DC Contact Rating	0.55 A @125 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polycarbonate
Manufacturer Part Number	9001SKS43BH13
Switch Bezel Material Type	Non-Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
