Schneider 3G-OTH-42333 — Technical Specifications

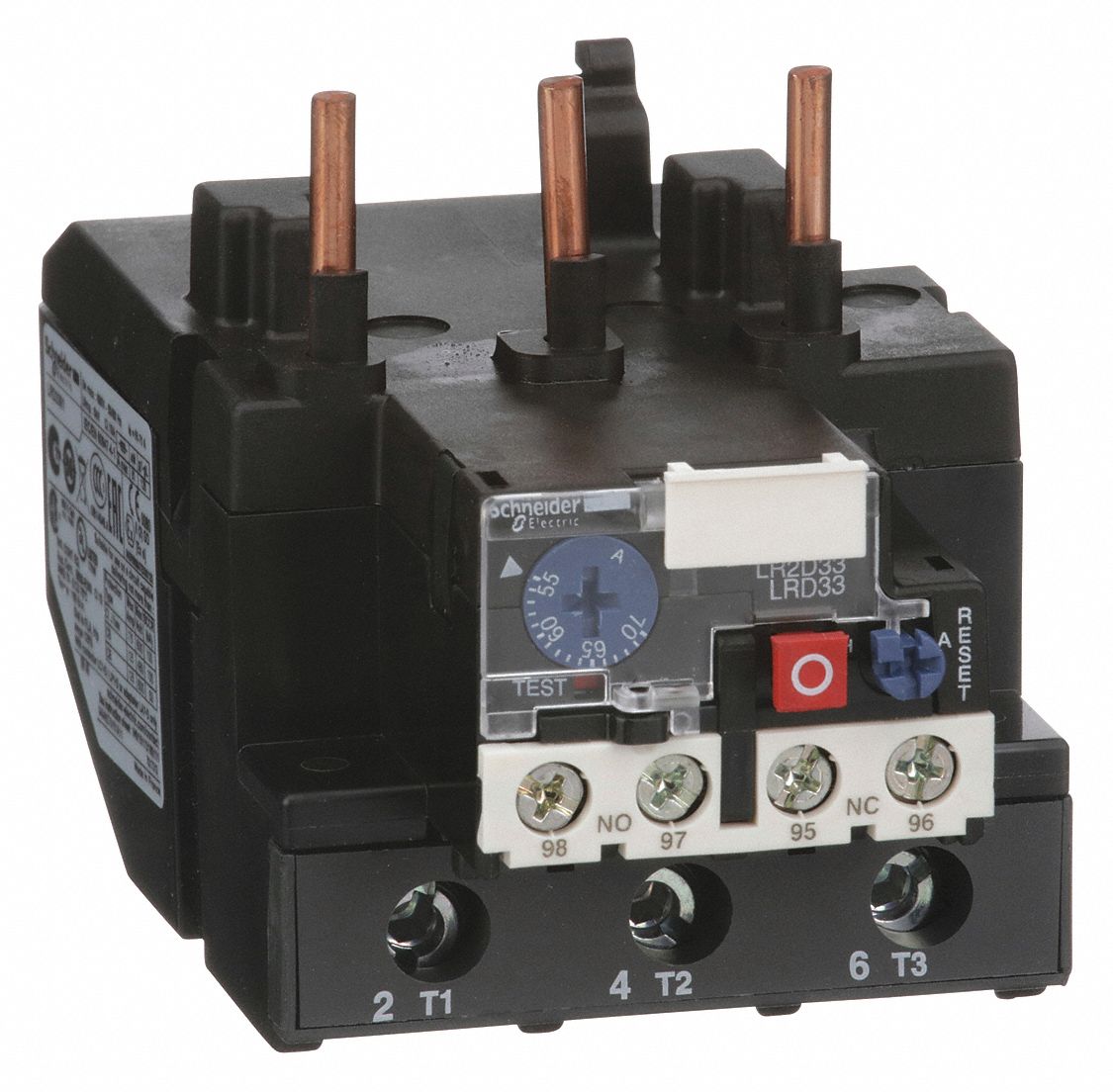

The SCHNEIDER Overload Relay: Thermal Protection (MPN LRD3361) is an IEC thermal overload relay with a 55 A – 70 A range, designed for use with TeSys Deca contactors (80 to 95 Amp models). It features 3 poles, a 1NO/1NC auxiliary contact form, phase loss sensitivity, and integrated bimetallic elements, eliminating the need for separate thermal units. The relay has a maximum voltage rating of 1000V AC and uses screw clamp terminals for connection.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 1NO/1NC, Phase Loss Sensitivity, 55 A – 70 A |
| Brand | SCHNEIDER |
| Poles | 3 |
| Compatible Contactors | TeSys Deca (80 to 95 Amp Models) |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Voltage Rating | 1000V AC |
| Phase Loss Sensitivity | Yes |
| Thermal Units Required | None (Relay Includes Integrated Bimetallic Elements) |
| Manufacturer Part Number | LRD3361 |
| Terminal Connection Type | Screw Clamp Terminals |
| Compatible Contactor Series | TeSys Deca |
