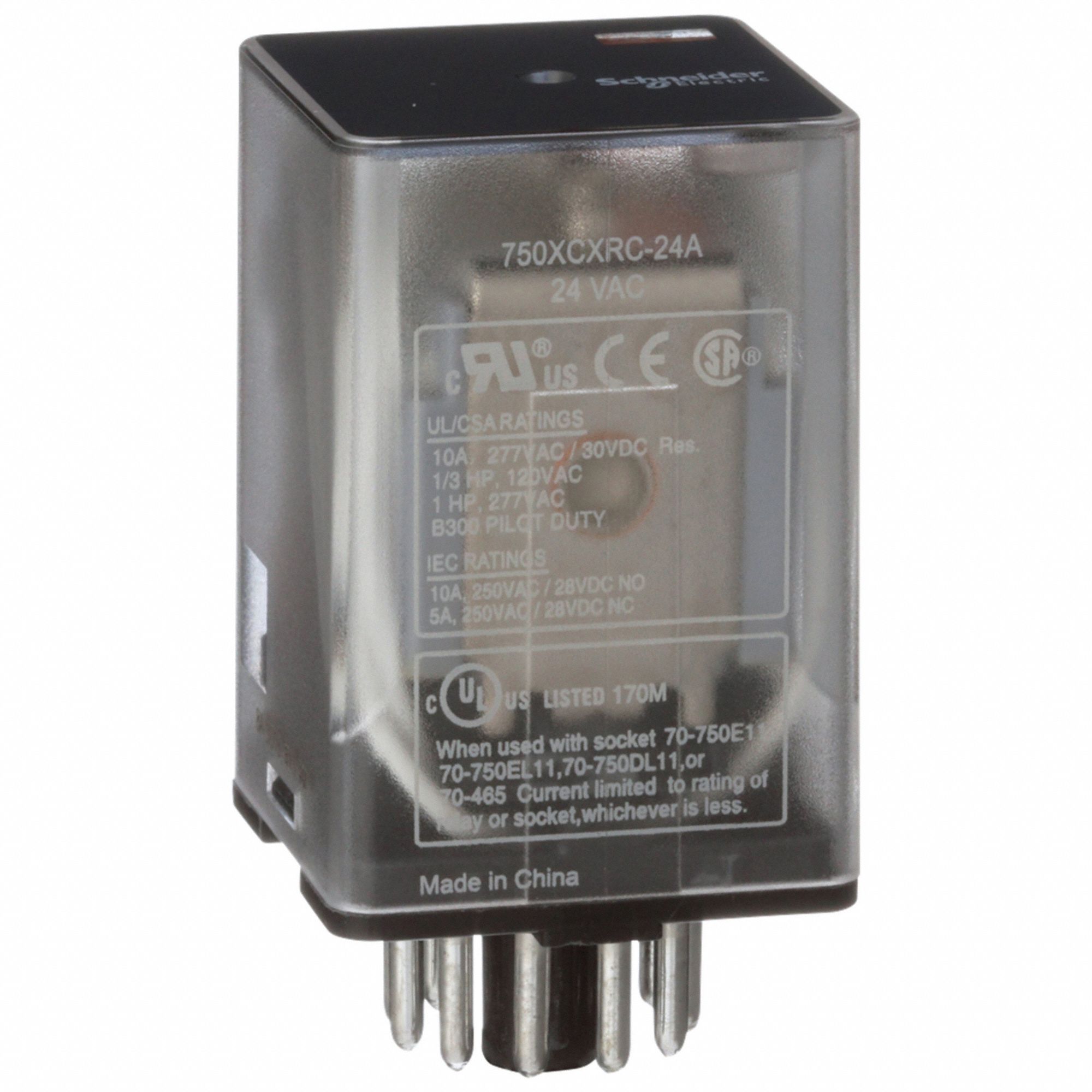

Schneider 3G-OTH-42676 — Technical Specifications

Name: Schneider 3G-OTH-42676 SCHNEIDER General Purpose Relay: Socket Mounted, 10 A Current Rating, 24V AC, 3PDT, B Socket (MPN 750XCXRC-24A). Key specifications — Brand: SCHNEIDER; Base Type: Octal; Mounting Style: Plug-In; Pin Shape: Round; Electrical Connection: 11-Pin Terminal; Manufacturer Part Number: 750XCXRC-24A; Operating Current: 5 A at 28V DC-1 (1 NC Resistive Load Conforming to IEC); Series: 750R Series.
Brand: Schneider

The SCHNEIDER 750R Series General Purpose Relay is a socket-mounted, plug-in relay with an octal base and round pins. It features an 11-pin terminal electrical connection and is rated for 5 A at 28V DC-1 (1 NC resistive load conforming to IEC). The relay operates with a 24V AC coil and has a 3PDT contact configuration.

View Product & Quote

Technical Specifications

Parameter	Value
AC	24V
Type	3PDT, B Socket
Brand	SCHNEIDER
Series	750R Series
Base Type	Octal
Pin Shape	Round
Current Rating	10 A
Mounting Style	Plug-In
Operating Current	5 A at 28V DC-1 (1 NC Resistive Load Conforming to IEC)
Electrical Connection	11-Pin Terminal
Manufacturer Part Number	750XCXRC-24A
