Schneider 3G-OTH-34217 — Technical Specifications

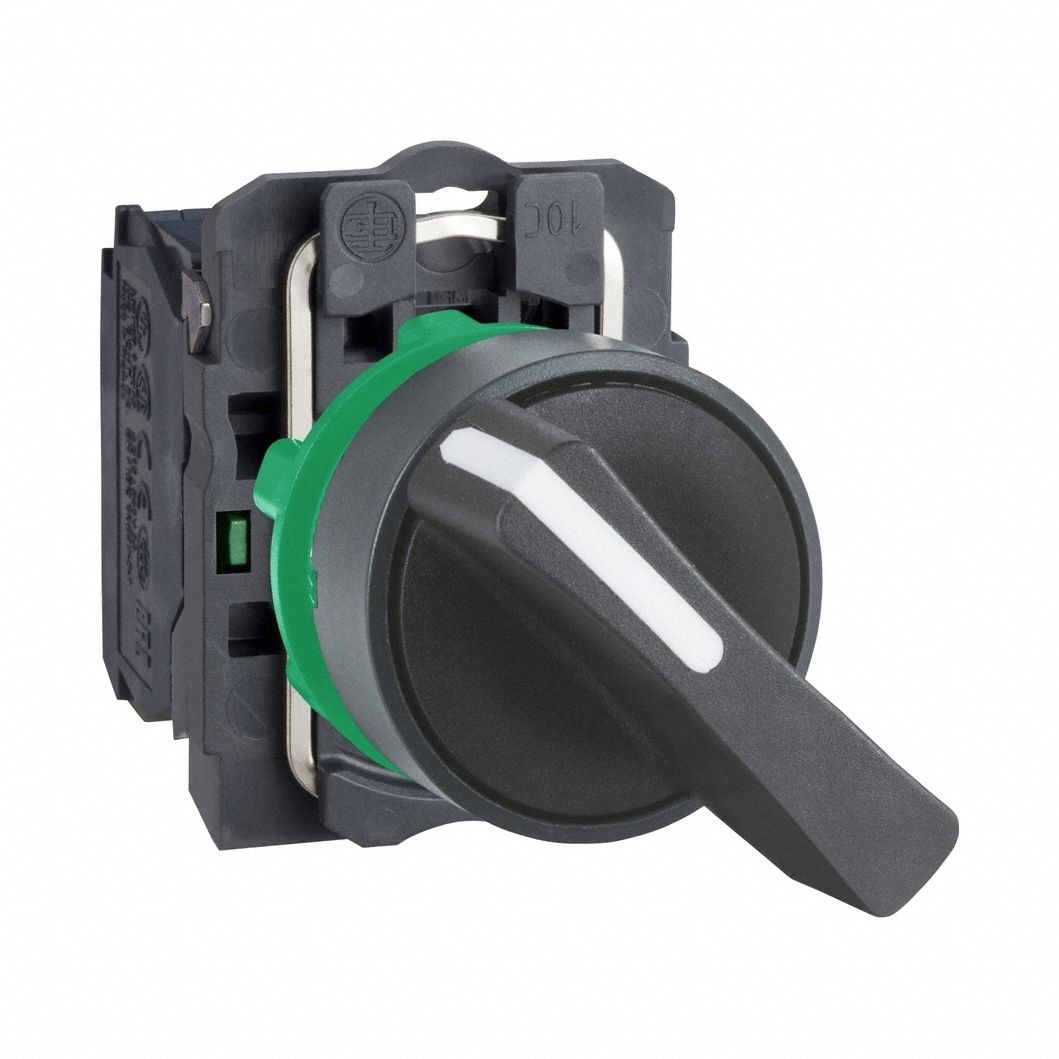

The SCHNEIDER XB5AJ21 is a 22 mm panel-mounting selector switch from the XB5 series, featuring a non-illuminated, long-handled knob with a plastic operator head and a non-metallic bezel. It offers a maintained/maintained action with two positions (Off/On) and no cam included, rated at 1.2 A @ 600 V AC and 0.55 A @ 125 V DC. This non-hazardous-location-rated switch is designed for industrial control applications requiring simple on/off selection.
Technical Specifications
| Parameter | Value |
|---|---|
| Cam | No Cam Included |
| Type | Extended Lever, 1NO, Non-Metallic |
| Brand | SCHNEIDER |
| Action | Maintained/Maintained |
| Series | XB5 |
| Positions | 2 |
| AC Contact Rating | 1.2 A @ 600 V |
| DC Contact Rating | 0.55 A @ 125 V |
| Operator Head Type | Long-Handled Knob |
| Operator Illumination | Non-Illuminated |
| Operator Head Material | Plastic |
| Manufacturer Part Number | XB5AJ21 |
| Switch Bezel Material Type | Non-Metallic |
| Switch Function @ 1st Position | Off |
| Switch Function @ 2nd Position | On |
| Switch Function @ 3rd Position | No Third Position |
| Switch Function @ 4th Position | No Fourth Position |
| Hazardous Location Specification | Not Rated |
