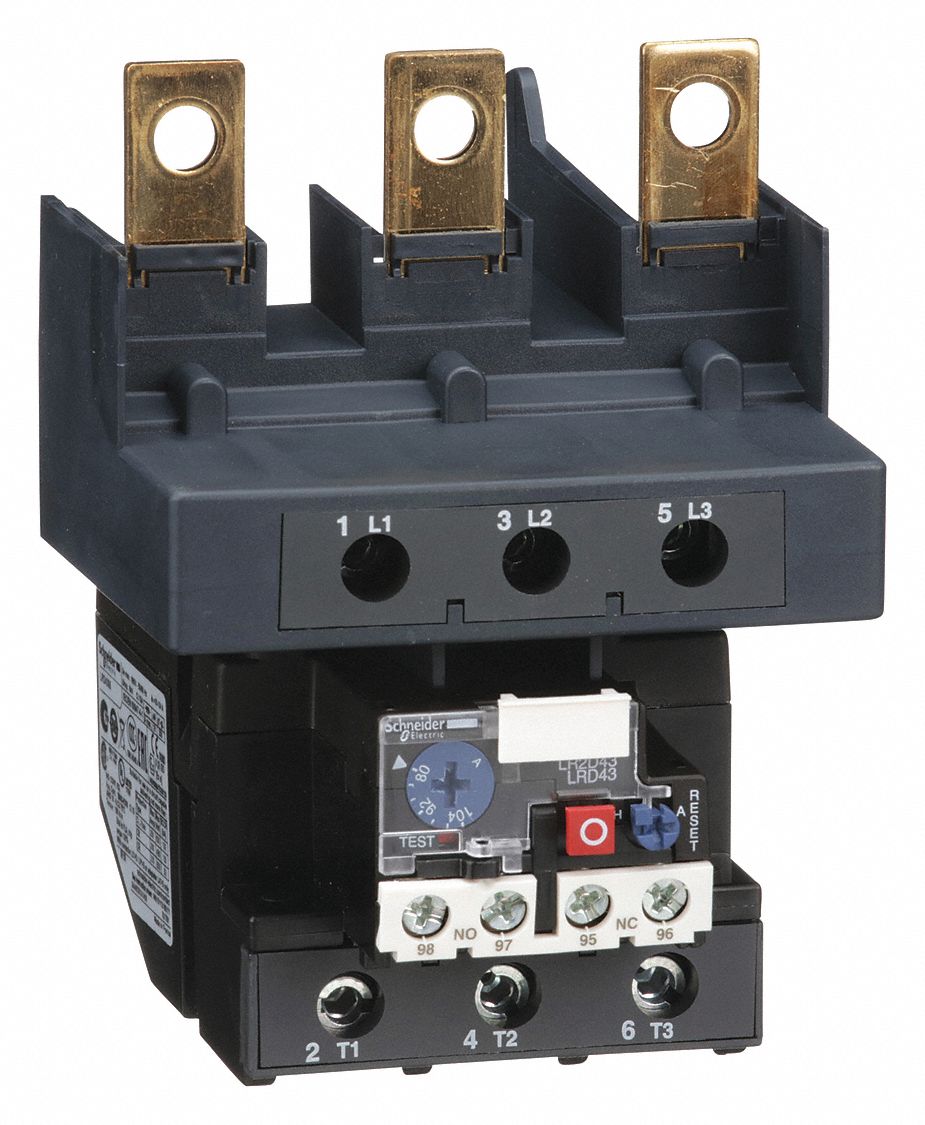

Schneider 3G-OTH-42498 — Technical Specifications
The SCHNEIDER LRD4365 is an IEC thermal overload relay with integrated bimetallic elements, eliminating the need for separate thermal units. It features 1NO/1NC auxiliary contacts, screw clamp terminals, and phase loss sensitivity, with a maximum voltage rating of 1000V AC. This 3-pole relay is compatible with TeSys Deca contactors in the 115 to 150 Amp range.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 1NO/1NC, Phase Loss Sensitivity, 80 A – 104 A |
| Brand | SCHNEIDER |
| Poles | 3 |
| Compatible Contactors | TeSys Deca (115 to 150 Amp Models) |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Voltage Rating | 1000V AC |
| Phase Loss Sensitivity | Yes |
| Thermal Units Required | None (Relay Includes Integrated Bimetallic Elements) |
| Manufacturer Part Number | LRD4365 |
| Terminal Connection Type | Screw Clamp Terminals |
| Compatible Contactor Series | TeSys Deca |
