Schneider 3G-OTH-38387 — Technical Specifications

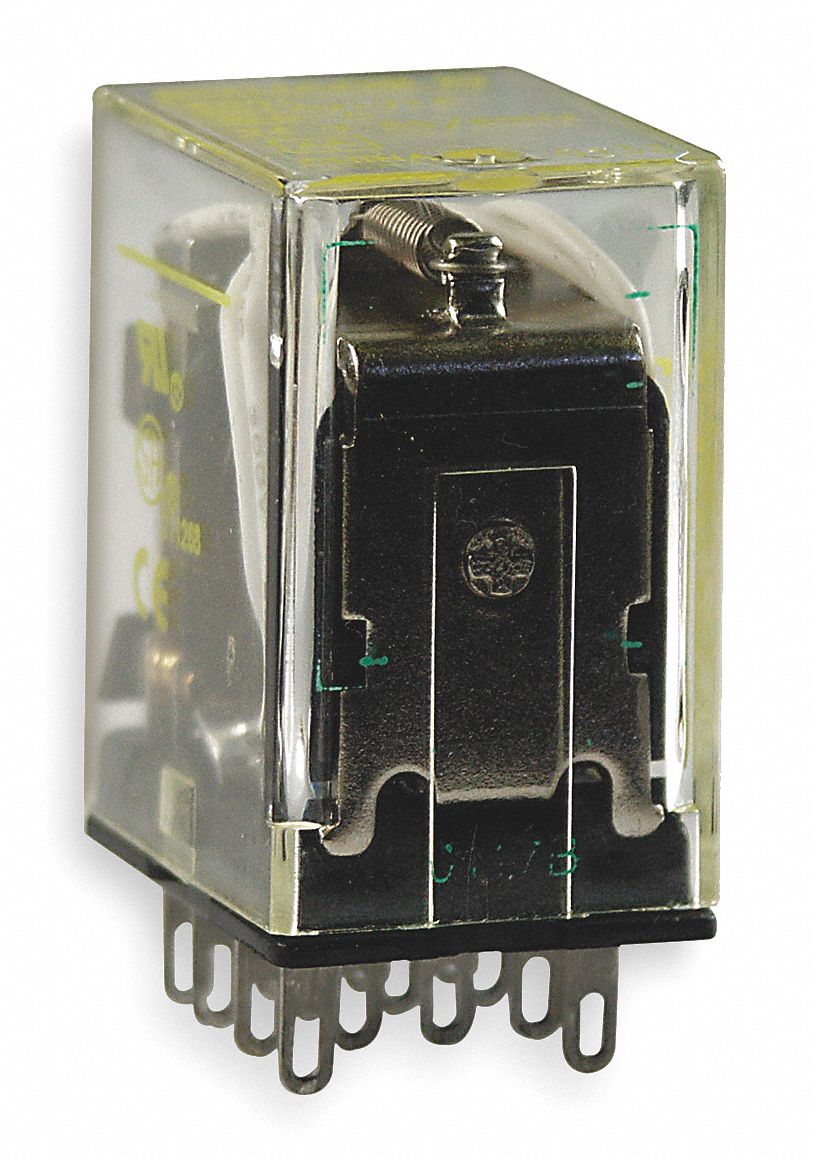

The SCHNEIDER General Purpose Relay is a socket-mounted relay from the Square D 8501R Miniature Control Series. It features a square base with flat pins, a 4PDT contact configuration, and a 24V DC coil. This relay has a 6 A current rating and 14 terminals with quick-connect electrical connections.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 24V |
| Type | 4PDT |
| Brand | SCHNEIDER |
| Series | Square D 8501R Miniature Control Series |
| Base Type | Square |
| Pin Shape | Flat |
| Current Rating | 6 A |
| Mounting Style | Socket |
| Pins/Terminals | 14 |
| Electrical Connection | Quick-Connect |
| Manufacturer Part Number | 8501RSD14P14V53 |
