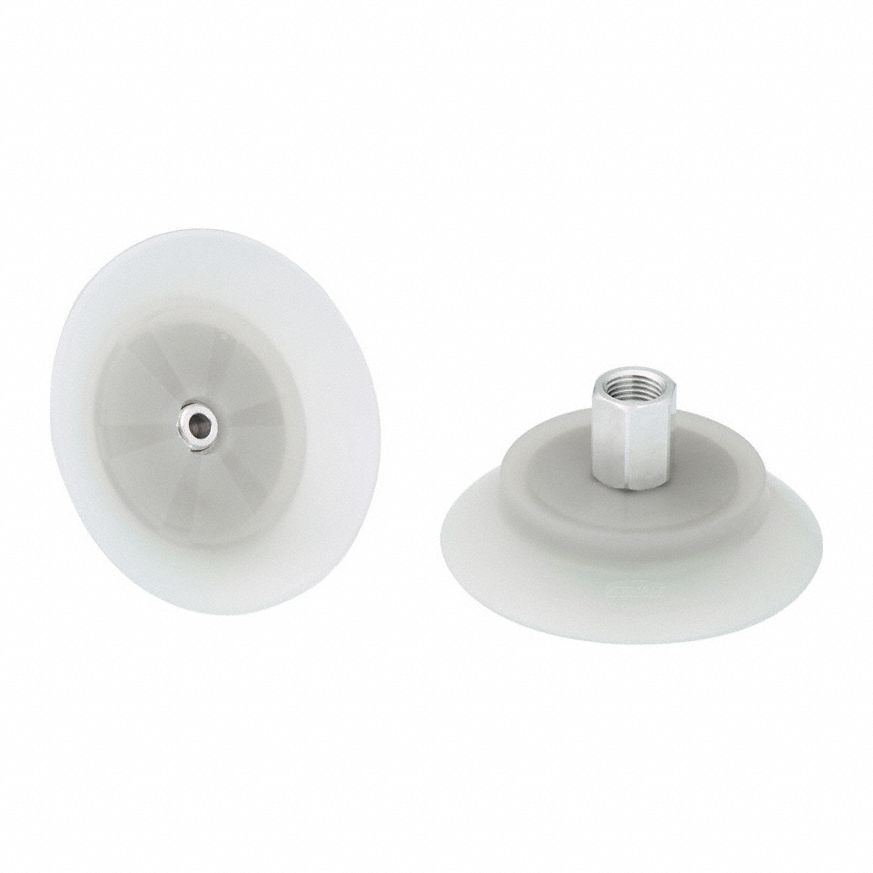

Schmalz 3G-OTH-159841 — Technical Specifications

Name: Schmalz 3G-OTH-159841 SCHMALZ Vacuum Pad Assembly: Flat, 1/4 in NPT Vacuum Port, 77.2 mm Pad Dia, Clear, 38.5 mm Pad Ht (MPN 10.01.01.15145). Key specifications — attr1019136: 10.01.01.15145; attr1019138: SCHMALZ; attr1019139: 55 A.
Brand: Schmalz

The SCHMALZ Vacuum Pad Assembly is a flat type, food-safe fast-handling vacuum pad assembly. It features a 1/4 in NPT vacuum port, a 77.2 mm pad diameter, and a 38.5 mm pad height, with a 55 A rating. This SCHMALZ assembly is designed for industrial vacuum handling applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Clear
Pad Ht	38.5 mm
Pad Dia	77.2 mm
NPT Vacuum Port	1/4 in
Manufacturer Part Number	10.01.01.15145
