Schmalz 3G-OTH-162345 — Technical Specifications

Name: Schmalz 3G-OTH-162345 SCHMALZ Vacuum Pad Assembly: G1/8 in, 28.2 mm Pad Dia, NBR-ESD, 55 A, Yellow, 25.2 mm Pad Ht (MPN 10.01.01.14128). Key specifications — attr1019168: 55 A; attr1019165: 10.01.01.14128; attr1019167: SCHMALZ; attr1019180: Yellow.
Brand: Schmalz

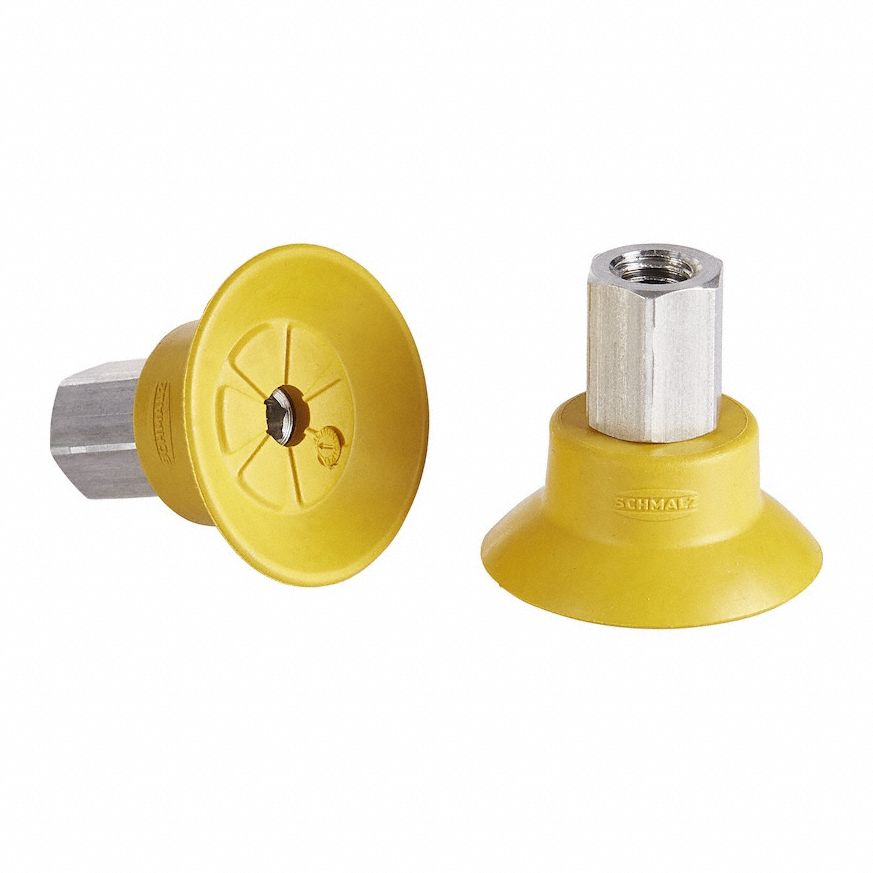

The SCHMALZ Vacuum Pad Assembly (SKU 814HU2, MPN 10.01.01.14128) is a flat-type electronics industry ESD vacuum pad assembly with a G1/8 in connection, 28.2 mm pad diameter, and 25.2 mm pad height. It features a yellow NBR-ESD material and is rated at 55 A.

View Product & Quote

Technical Specifications

Parameter	Value
Type	NBR-ESD, 55 A, Yellow
Pad Ht	25.2 mm
Pad Dia	28.2 mm
Manufacturer Part Number	10.01.01.14128
