Schmalz 3G-OTH-162346 — Technical Specifications

Name: Schmalz 3G-OTH-162346 SCHMALZ Vacuum Pad Assembly: G1/8 in, 28.2 mm Pad Dia, NBR-ESD, 55 A, Yellow, 17.2 mm Pad Ht (MPN 10.01.01.14124). Key specifications — attr1019168: 55 A; attr1019165: 10.01.01.14124; attr1019167: SCHMALZ; attr1019180: Yellow.
Brand: Schmalz

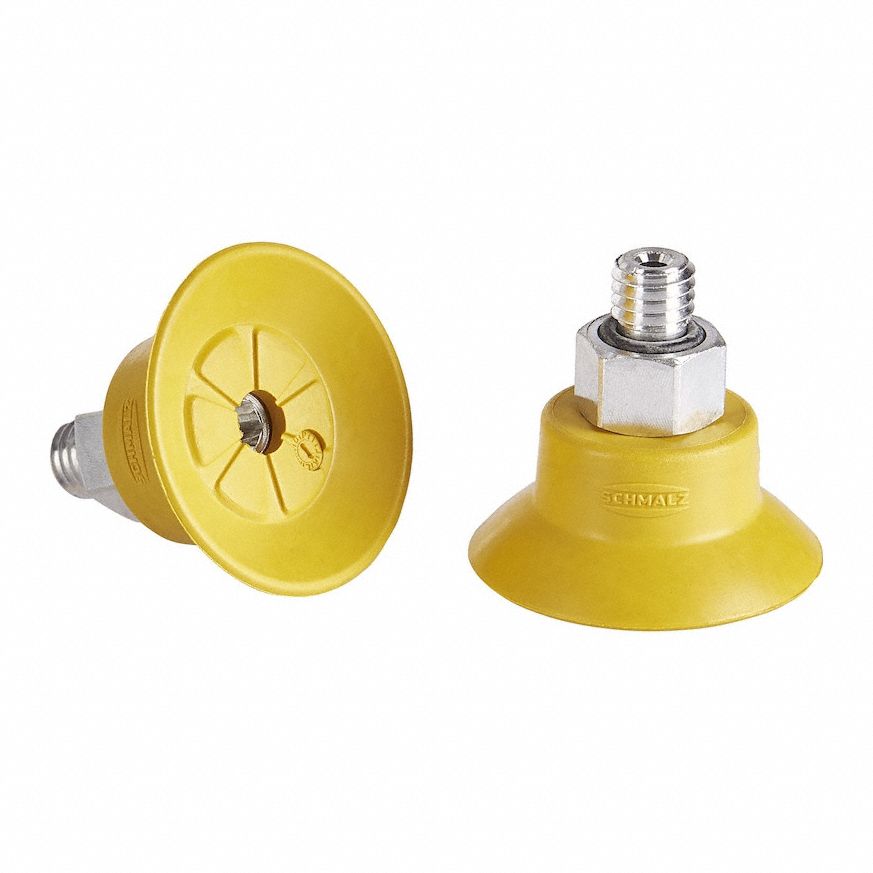

The SCHMALZ Vacuum Pad Assembly (SKU 814HU1, MPN 10.01.01.14124) is a flat-type electronics industry ESD vacuum pad assembly with a G1/8 in connection, 28.2 mm pad diameter, and 17.2 mm pad height. It features NBR-ESD material, a yellow color, and a 55 A rating.

View Product & Quote

Technical Specifications

Parameter	Value
Type	NBR-ESD, 55 A, Yellow
Pad Ht	17.2 mm
Pad Dia	28.2 mm
Manufacturer Part Number	10.01.01.14124
