Schmalz 3G-OTH-168880 — Technical Specifications

Name: Schmalz 3G-OTH-168880 SCHMALZ Vacuum Pad Assembly: 1/8 in NPT, 22.8 mm Pad Dia, NBR, 55 A, Gray, 23.5 mm Pad Ht (MPN 10.01.01.15023). Key specifications — attr1019168: 55 A; attr1019165: 10.01.01.15023; attr1019167: SCHMALZ; attr1019180: Gray.
Brand: Schmalz

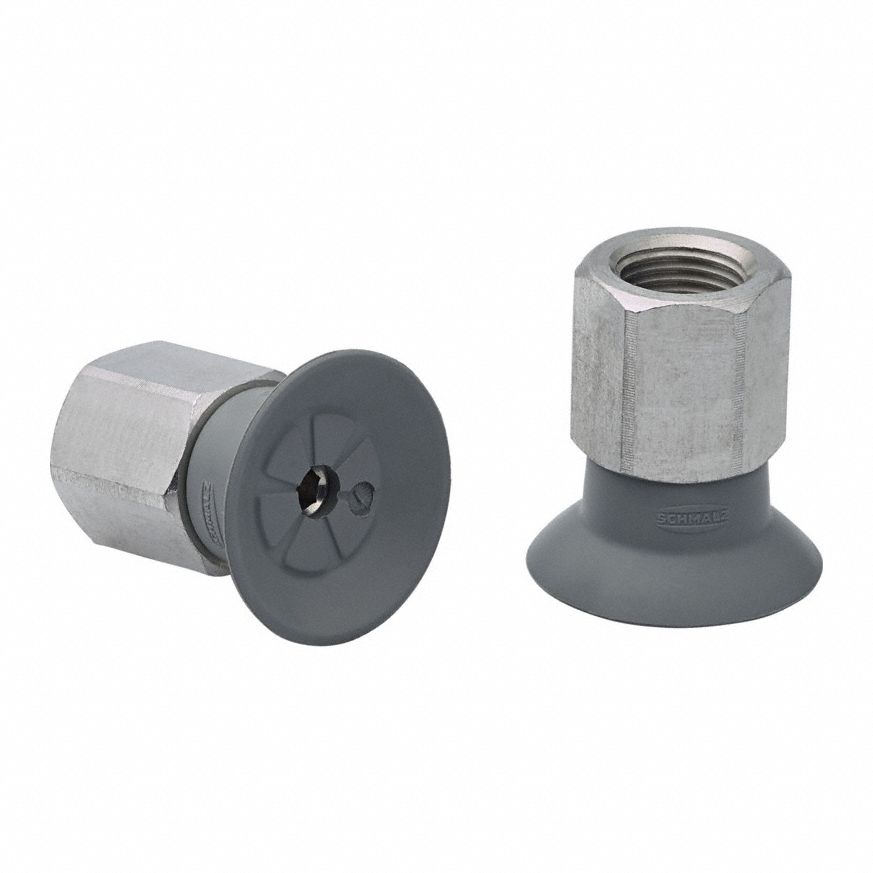

The SCHMALZ Vacuum Pad Assembly is a flat type electronics industry vacuum pad assembly with a 1/8 in NPT connection, 22.8 mm pad diameter, and 23.5 mm pad height. It features an NBR material, 55 A hardness, and a gray color. The manufacturer part number is 10.01.01.15023.

View Product & Quote

Technical Specifications

Parameter	Value
Type	NBR, 55 A, Gray
Pad Ht	23.5 mm
Pad Dia	22.8 mm
Manufacturer Part Number	10.01.01.15023
