Schmalz 3G-OTH-168847 — Technical Specifications

Name: Schmalz 3G-OTH-168847 SCHMALZ Vacuum Pad Assembly: 1/4 in NPT, 108 mm Pad Dia, NBR, 55 A, Gray, 24 mm Pad Ht (MPN 10.01.01.15164). Key specifications — attr1019168: 55 A; attr1019165: 10.01.01.15164; attr1019167: SCHMALZ; attr1019180: Gray.
Brand: Schmalz

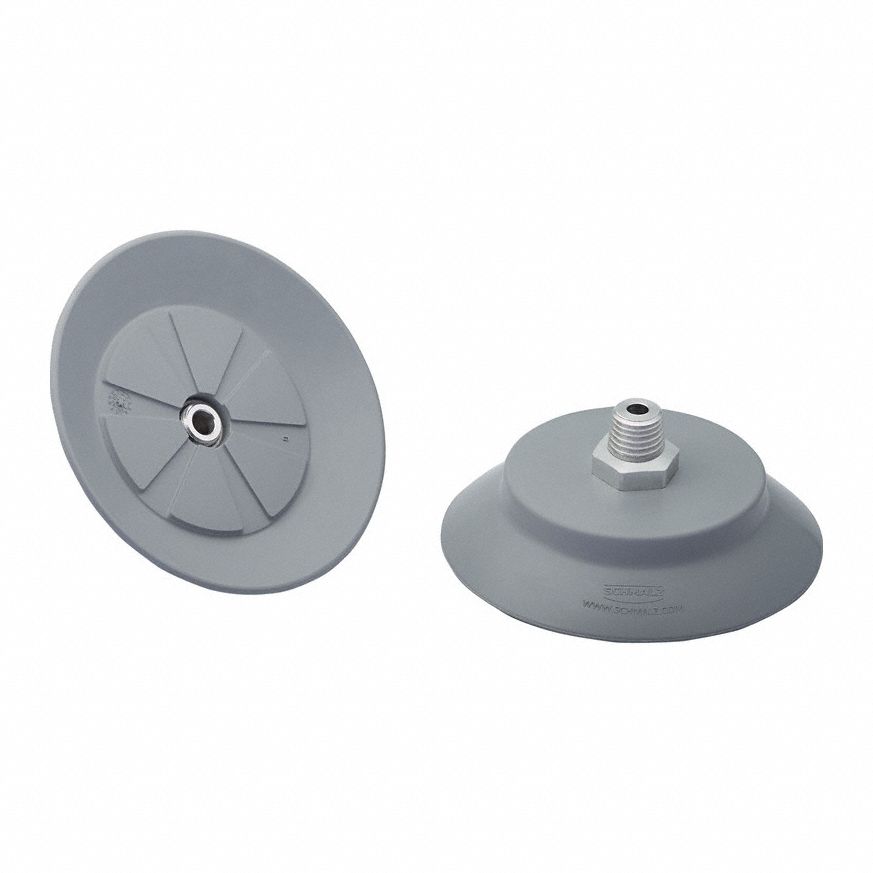

The SCHMALZ Vacuum Pad Assembly (SKU 814HL0) is a flat type electronics industry vacuum pad assembly with a 1/4 in NPT connection. It features a 108 mm pad diameter, 24 mm pad height, and is made of NBR material in gray, rated at 55 A. The manufacturer part number is 10.01.01.15164.

View Product & Quote

Technical Specifications

Parameter	Value
Type	NBR, 55 A, Gray
Pad Ht	24 mm
Pad Dia	108 mm
Manufacturer Part Number	10.01.01.15164
